Weidmüller
2675670000

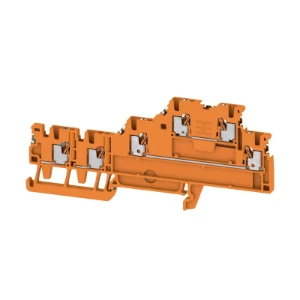

Sensor/actuator terminal block
Manufacturer part number: 2675670000
Serie: A-series
Type: AIO23 1.5 2SI DL OR
EAN-code: 4050118733945
SKU Omnical: 4055423
Stock: 0.
Estimated lead time: 11 days *
PreOrder
XBW
€
565,26
per 100 items
€
484,43
per 100 items
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
2675670000 Weidmüller Sensor/actuator terminal block
Weidmüller Sensor/actuator terminal block Initiator/actuator terminal, PUSH IN, orange, 1.5 mm², 13.5 A, 250 V,
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Connectable conductor cross section fine-strand without cable end sleeve
(mm²)
0.5 - 1.5
Connectable conductor cross section fine-strand with cable end sleeve
(mm²)
0.5 - 1.5
Connectable conductor cross section solid-core
(mm²)
0.5 - 1.5
Connectable conductor cross section multi-wired
(mm²)
0.5 - 1.5
Rated current In
(A)
13.5
Width
(mm)
3.5
Rated voltage
(V)
250
Number of levels
3
Number of clamp positions per level
2
Internally connected stages
No
Type of electrical connection 1
Plug-in connection
Connection position
Above
Mounting method
DIN rail (top hat rail) 35 mm
Cross connectable
Yes
Material insulation body
Thermoplastic
Operating temperature
(°C)
-60 - 130
Inflammability class of insulation material according to with UL94
V0
Width/grid dimension
(mm)
3.5
Height at lowest possible mounting height
(mm)
110
Length
(mm)
49.5
Explosion-tested version 'Ex e'
Yes
Closing plate required
Yes
Colour
Orange
With PE connection
No
With shield connection
No
Height
(mm)
110
Depth
(mm)
49.5
Stock and logistics
Height
0.057 m
Width
0.182 m
Depth
0.235 m
Packaging
Package
Weight
1.083 kg
HS code
85369010
Country of Origin
DE
