Weidmüller
2591050000

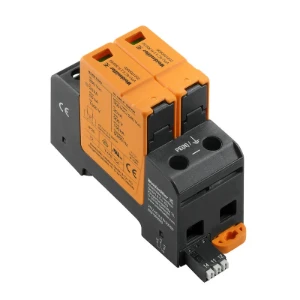

Surge protection device for power supply systems
Manufacturer part number: 2591050000
Serie: VPU series
Type: VPU AC II 2 R 300/50
EAN-code: 4050118599886
SKU Omnical: 1517338
Stock: 0.
Estimated lead time: 35 days *
PreOrder
XER
€
158,40
per item
€
143,67
per item
EUR | Excluding VAT
Quantity
items
Add to cart
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
2591050000 Weidmüller Surge protection device for power supply systems
Weidmüller Surge protection device for power supply systems Surge voltage arrester (power supply systems), Surge protection, with
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
System configuration
Other
Type of poles
2
Nominal discharge surge current (8/20)
(kA)
20
Nominal voltage AC
(V)
230
Max. continuous voltage AC
(V)
300
Mounting method
DIN rail (top hat rail) 35 mm
Construction size
2 modular spacing
Max. conductor cross section solid (solid, stranded)
(mm²)
35
Max. conductor cross section flexible (fine-strand)
(mm²)
25
With remote signalling contact
Yes
Integrated backup fuse
No
Signalling at the device
Optic
Category type 2
Yes
Short-circuit-proof
Yes
Degree of protection (IP)
IP20
System configuration DC
No
System configuration IT
No
System configuration TN
Yes
System configuration TN-C
Yes
System configuration TN-C-S
No
System configuration TN-S
No
System configuration TT
No
System configuration other
Yes
Number of conductors (without earthing)
2
Short-circuit breaking capacity (Isccr)
(kA)
50
Max. discharge surge current (8/20)
(kA)
20
Integrated short-circuit protection
Yes
Stock and logistics
Height
0.047 m
Width
0.101 m
Depth
0.111 m
Packaging
Package
Weight
0.281 kg
HS code
85363090
Country of Origin
SI
