Weidmüller
1549700000

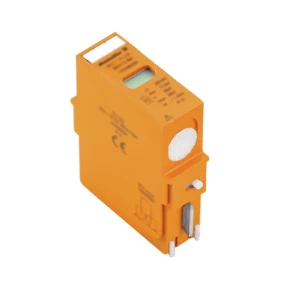

Surge protection device for power supply systems
Manufacturer part number: 1549700000
Serie: VPU series
Type: VPU II 0 1000V/40KA AC
EAN-code: 4050118356182
SKU Omnical: 2219930
Stock: 0.
Estimated lead time: 35 days *
PreOrder
XER
€
118,70
per item
€
107,66
per item
EUR | Excluding VAT
Quantity
items
Add to cart
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
1549700000 Weidmüller Surge protection device for power supply systems
Surge voltage arrester, Low voltage, Accessories, Spare arrester
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Type of poles
1
Nominal discharge surge current (8/20)
(kA)
20
Nominal voltage AC
(V)
830
Max. continuous voltage AC
(V)
1000
Voltage protection level
(kV)
3.8
Voltage protection level L-N
(kV)
3.8
Mounting method
DIN rail (top hat rail) 35 mm
Construction size
1 modular spacing
Integrated backup fuse
No
Signalling at the device
Optic
Category type 2
Yes
Short-circuit-proof
Yes
Degree of protection (IP)
IP20
System configuration DC
No
Number of conductors (without earthing)
1
Short-circuit breaking capacity (Isccr)
(kA)
25
Max. discharge surge current (8/20)
(kA)
20
Integrated short-circuit protection
Yes
Stock and logistics
Height
0.025 m
Width
0.078 m
Depth
0.108 m
Packaging
Package
Weight
0.152 kg
HS code
85363090
Country of Origin
SI
