Wago
770-1105
Plug-in connector for plug-in building installation
Manufacturer part number: 770-1105
Serie: Series 770
Type: 770-1105
EAN-code: 4044918252706
SKU Omnical: 1800826
Stock: 0.
Estimated lead time: 5 days *
PreOrder
XOB
€
761,00
per 100 items
€
581,40
per 100 items
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
770-1105 Wago Plug-in connector for plug-in building installation
Wago Plug-in connector for plug-in building installation Female 5-polig Cod. I blauw
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Rated voltage
(V)
400
Rated current
(A)
25
Number of poles
5
Degree of protection (IP)
IP20
Connection type
Spring clamp connection

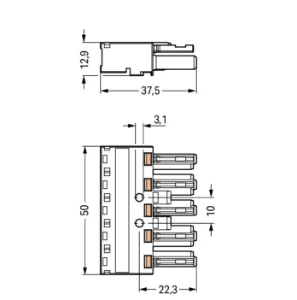

Width
(mm)
50
Model
Bus
Number of connections per pole
2
Mechanical coding
Yes
Colour coding/contact insert
Blue
With strain relief
No
Material housing
Polyamide (PA)
Halogen free
No
Fire load
(kWh)
0.072
Contact material
CuSn
Surface treatment contacts
Tinned
Pollution degree
3
Continuity resistor
(mOhm)
1
Rated surge voltage
(kV)
6
Length
(mm)
37.5
Height
(mm)
12.9
Connection cross section (fine-strand)
(mm²)
0.5 - 4
Connection cross section (solid-core)
(mm²)
0.5 - 4
Locking mechanism
Separate
Max. continuous temperature resistance contact part
(°C)
85
Max. continuous temperature resistance strain relief
(°C)
105
Stock and logistics
Height
0.048 m
Width
0.115 m
Depth
0.348 m
Packaging
box
Weight
0.825 kg
HS code
85366990
Country of Origin
DE
