Wago
750-375
Fieldbus, decentr. periphery - basic appliance
Manufacturer part number: 750-375
Serie: Series 750
Type: 750-375
EAN-code: 4050821687436
SKU Omnical: 1183438
Stock:
6 items.
Delivery time: 1-2 business days.
InStock
XNX
€
427,94
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

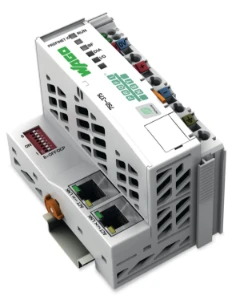

750-375 Wago Fieldbus, decentr. periphery - basic appliance
Wago Fieldbus, decentr. periphery - basic appliance Veldbuscoupler PROFINET IO Derde generatie Advanced lichtgrijs
Datasheet
With integrated power supply
Yes
Input voltage at DC
(V)
24 - 24
Type of voltage (input voltage)
DC
Width
(mm)
61.5
Max. input current DC
(A)
0.5
Number of HW-interfaces industrial Ethernet
0
Number of interfaces PROFINET
2
Number of HW-interfaces RS-232
0
Number of HW-interfaces RS-422
0
Number of HW-interfaces RS-485
0
Number of HW-interfaces serial TTY
0
Number of HW-interfaces USB
0
Number of HW-interfaces parallel
0
Number of HW-interfaces Wireless
0
Number of HW-interfaces other
0
With optical interface
No
Supporting protocol for TCP/IP
No
Supporting protocol for PROFIBUS
No
Supporting protocol for CAN
No
Supporting protocol for INTERBUS
No
Supporting protocol for ASI
No
Supporting protocol for KNX
No
Supporting protocol for MODBUS
No
Supporting protocol for Data-Highway
No
Supporting protocol for DeviceNet
No
Supporting protocol for SUCONET
No
Supporting protocol for LON
No
Supporting protocol for SERCOS
No
Supporting protocol for PROFINET IO
Yes
Supporting protocol for PROFINET CBA
No
Supporting protocol for Foundation Fieldbus
No
Supporting protocol for EtherNet/IP
No
Supporting protocol for AS-Interface Safety at Work
No
Supporting protocol for DeviceNet Safety
No
Supporting protocol for INTERBUS-Safety
No
Supporting protocol for PROFIsafe
No
Supporting protocol for SafetyBUS p
No
Supporting protocol for other bus systems
No
Radio standard Bluetooth
No
Radio standard Wi-Fi 802.11
No
Radio standard GPRS
No
Radio standard GSM
No
Radio standard UMTS
No
IO link master
No
System accessory
Yes
Degree of protection (IP)
IP20
Number of slots
1
With pluggable modules, digital I/O
Yes
With pluggable modules, analogue I/O
Yes
With pluggable modules, communication modules
Yes
With pluggable modules, function and technology modules
Yes
With pluggable modules, central modules
Yes
With pluggable modules, others
Yes
Type of electric connection
Spring clamp connection
With potential separation
Yes
Fieldbus connection over separate bus coupler possible
No
With bus coupler for modular station connection
Yes
Rail mounting possible
Yes
Wall mounting/direct mounting
No
Front built-in possible
No
Rack-assembly possible
No
Suitable for safety functions
No
Appendant operation agent (Ex ia)
No
Appendant operation agent (Ex ib)
No
Explosion safety category for gas
ATEX gas-ex-protection, Cat. 3G
Explosion safety category for dust
ATEX dust-ex-protection, Cat. 3D
Height
(mm)
100
Depth
(mm)
71.9
Stock and logistics
Height
0.076 m
Width
0.082 m
Depth
0.106 m
Packaging
box
Weight
0.183 kg
HS code
85176200
Country of Origin
DE
