Wago
2022-101/000-006
Single- and multi-pole terminal strip
Manufacturer part number: 2022-101/000-006
Serie: Series 2022
Type: 2022-101/000-006
EAN-code: 4045454705411
SKU Omnical: 1207061
Stock: 0.
Estimated lead time: 9 days *
PreOrder
XOA
€
127,00
per 100 items
€
103,38
per 100 items
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

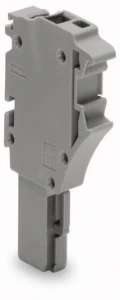

2022-101/000-006 Wago Single- and multi-pole terminal strip
Wago Single- and multi-pole terminal strip 1-draads female steker Push-in CAGE CLAMP® 4 mm² blauw
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Explosion-tested version 'Ex e'
No
Connectable conductor cross section fine-strand without cable end sleeve
(mm²)
0.25 - 4
Connectable conductor cross section fine-strand with cable end sleeve
(mm²)
0.75 - 2.5
Connectable conductor cross section solid-core
(mm²)
0.75 - 4
Width
(mm)
5.2
Connectable conductor cross section multi-wired
(mm²)
0.25 - 2.5
Rated current In
(A)
24
Rated voltage
(V)
690
Type of electrical connection 1
Spring clamp connection
Type of electrical connection 2
Spring clamp connection
Connection position
Above
Number of poles
1
Number of clamp positions per pole
1
Mounting method
Other
Material insulation body
Thermoplastic
Operating temperature
(°C)
105 - 105
Inflammability class of insulation material according to with UL94
V0
Width/grid dimension
(mm)
5.2
Height at lowest possible mounting height
(mm)
40.5
Length
(mm)
22.4
Closing plate required
No
Colour
Blue
Transparent
No
Height
(mm)
22.4
Halogen free
Yes
Depth
(mm)
40.5
Stock and logistics
Height
0.072 m
Width
0.134 m
Depth
0.285 m
Packaging
box
Weight
0.744 kg
HS code
85366990
Country of Origin
DE
