Wago
2002-1611

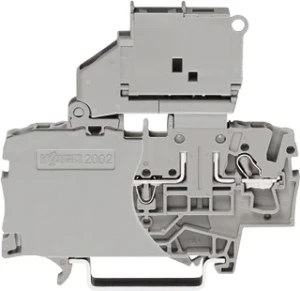

Fuse terminal block
Manufacturer part number: 2002-1611
Serie: Serie 2002
Type: 2002-1611
EAN-code: 4055143870344
SKU Omnical: 1091853
Stock:
641 items.
Delivery time: 1-2 business days.
InStock
XOD
€
464,00
per 100 items
€
367,95
per 100 items
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
2002-1611 Wago Fuse terminal block
Wago Fuse terminal block 2-draads zekeringsklem met draaibare zekeringhouder en afsluitplaat gr
Datasheet
Type of fuse insert
G-fuse 5x20 mm
Type of fuse holder
Swivelling
Type of indication element for defect indication
None
Width
(mm)
6.2
Connectable conductor cross section fine-strand without cable end sleeve
(mm²)
0.25 - 4
Connectable conductor cross section fine-strand with cable end sleeve
(mm²)
0.75 - 2.5
Connectable conductor cross section solid-core
(mm²)
0.75 - 4
Connectable conductor cross section multi-wired
(mm²)
0.25 - 2.5
Rated current In
(A)
6.3
Rated voltage
(V)
250
Type of electrical connection 1
Spring clamp connection
Type of electrical connection 2
Spring clamp connection
Number of levels
1
Connection position
Above
Mounting method
DIN rail (top hat rail) 35 mm
Material insulation body
Thermoplastic
Operating temperature
(°C)
105 - 105
Inflammability class of insulation material according to with UL94
V0
Width/grid dimension
(mm)
6.2
Height at lowest possible mounting height
(mm)
57.6
Length
(mm)
66.5
Closing plate required
No
Colour
Grey
Height
(mm)
66.1
Depth
(mm)
57.2
Stock and logistics
Height
0.07 m
Width
0.095 m
Depth
0.355 m
Packaging
box
Weight
0.733 kg
HS code
85369095
Country of Origin
CN
