Wago
2000-5311
Sensor/actuator terminal block
Manufacturer part number: 2000-5311
Serie: Series 2000
Type: 2000-5311
EAN-code: 4055143393447
SKU Omnical: 1506349
Stock:
540 items.
Delivery time: 1-2 business days.
InStock
XOD
€
6,15
per item
€
4,88
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

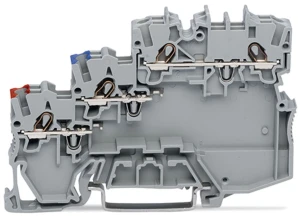

2000-5311 Wago Sensor/actuator terminal block
Wago Sensor/actuator terminal block 3-draads initiatorklem met gekleurde invoeropeningen 1 mm² grijs
Datasheet
Connectable conductor cross section fine-strand without cable end sleeve
(mm²)
0.14 - 1.5
Connectable conductor cross section fine-strand with cable end sleeve
(mm²)
0.5 - 0.75
Connectable conductor cross section solid-core
(mm²)
0.5 - 1.5
Connectable conductor cross section multi-wired
(mm²)
0.14 - 1
Rated current In
(A)
13.5
Width
(mm)
7
Rated voltage
(V)
250
Number of levels
3
Number of clamp positions per level
2
Internally connected stages
No
Type of electrical connection 1
Spring clamp connection
Type of electrical connection 2
Spring clamp connection
Connection position
Above
Mounting method
DIN rail (top hat rail) 35 mm
Cross connectable
Yes
Material insulation body
Thermoplastic
Operating temperature
(°C)
105 - 105
Inflammability class of insulation material according to with UL94
V0
Width/grid dimension
(mm)
7
Height at lowest possible mounting height
(mm)
52.4
Length
(mm)
81.1
Explosion-tested version 'Ex e'
No
Closing plate required
Yes
Colour
Grey
LED switching for
No
With PE connection
No
With shield connection
No
With power supply function
No
Disconnect function
No
Height
(mm)
81.1
Depth
(mm)
52.4
Stock and logistics
Height
0.072 m
Width
0.103 m
Depth
0.353 m
Packaging
box
Weight
0.812 kg
HS code
85369010
Country of Origin
DE
