TKF
181601
Single core single insulated wire
Manufacturer part number: 181601
Serie: NL-Elektr.leid/INT-Stuurstr
Type: ZD H07Z1-U B2ca
EAN-code: 8713182360764
SKU Omnical: 1235609
Stock:
303 x 100 meter.
Delivery time: 1-2 business days.
InStock
YVK
€
140,10
per 100 meter
€
98,07
per 100 meter
EUR | Excluding VAT
Quantity
x 100 meter
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
181601 TKF Single core single insulated wire

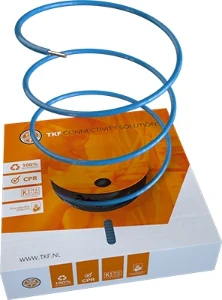

TKF Single core single insulated wire ZD H07Z1-U B2ca 2,5 mm² Blauw 5015
Datasheet
Nominal cross section conductor
(mm²)
2.5
Diameter conductor
(mm)
1.74
Conductor category
Class 1 = solid
Material core insulation
Polyolefin
Screen
No
Core colour
Blue
Flame retardant
According to IEC/EN 60332-1-2
Low smoke (according to EN 61034-2)
No
Outer diameter approx.
(mm)
3.4
Permitted cable outer temperature during assembling/handling
(°C)
-5 - 50
Permitted cable outer temperature after assembling without vibration
(°C)
-20 - 70
Nominal voltage U0
(V)
450
Nominal voltage U
(V)
750
Halogen free according to EN 60754-1/2
Yes
Low temperature resistant according to EN 60811-504+505+506
No
Oil resistant according to IEC 60811-404
No
Conductor material
Copper
Conductor surface
Bare
Max. conductor temperature
(°C)
70
B2ca
s1
d1
a1
Core identification
Colour
Stock and logistics
Height
640 mm
Width
150 mm
Depth
640 mm
Packaging
Ring
Weight
3 kg
HS code
85444995
