Spelsberg
98477501

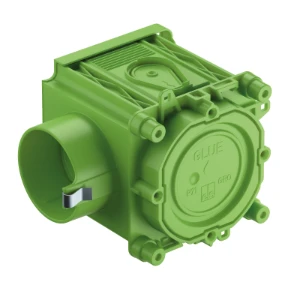

Box/housing for built-in mounting in the wall/ceiling
Manufacturer part number: 98477501
Serie:
Type: P 71 GRO-K
EAN-code: 4013902597536
SKU Omnical: 4326558
Stock: 0.
Estimated lead time: 7 days *
PreOrder
SSL Connection
WorldWide Shipping
98477501 Spelsberg Box/housing for built-in mounting in the wall/ceiling
Spelsberg Box/housing for built-in mounting in the wall/ceiling P 71 GRO-K centraaldoos voor dikke buis
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Mounting method
Concrete building
Shape
Square
Construction type
Built-in installation box (device box)
Model
Single
Equipped with
None
Width
(mm)
71
Length
(mm)
71
Inner depth
(mm)
72.9
For number of electric fittings
1
Mounting switching equipment
Screwing
With screws
No
For tube diameter
25 mm
Suitable for cable diameter
(mm)
1 - 32
Pipe locking
Yes
Inlet from the rear
Yes
Number of inlets
4
Material
Plastic
Halogen free
Yes
Surface protection
Untreated
Colour
Green
Degree of protection (IP)
IP30
Cover attachment
Hinged
Sealable
No
Circuit integrity
None
With screening
No
Air tight
No
Number of poles of the clamp
0
Clamp position fixed
No
Luminaire hook mounting
No
Nozzle
Pipe socket
Provided with revolving ring
No
Connectable
Yes
Depth
(mm)
76.5 - 76.5
Housing feed-through by break-out opening
Yes
Housing feed-through by seal membrane
No
Housing feed-through by nozzle
No
Housing feed-through by step membrane
No
Pipe locking optional
No
Number of included spouts
0
Special application
None
Cover model
Blind cover
Transparent cover
No
0
0
With partition panel
No
Stock and logistics
Height
0.071 m
Width
0.071 m
Depth
0.077 m
Packaging
item
Weight
0.059 kg
HS code
39269097
