Spelsberg
49940201

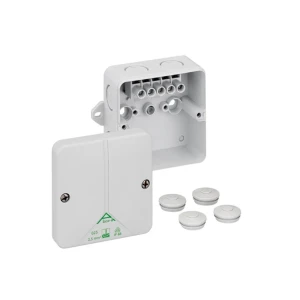

Box/housing for surface mounting on the wall/ceiling
Manufacturer part number: 49940201
Serie:
Type: ABOX-I M 025-2,5
EAN-code: 4013902532520
SKU Omnical: 1420063
Stock: 0.
Estimated lead time: 7 days *
PreOrder
SSL Connection
WorldWide Shipping
49940201 Spelsberg Box/housing for surface mounting on the wall/ceiling
Spelsberg Box/housing for surface mounting on the wall/ceiling Abox-i m 025 AB-2,5² Aftakdoos
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Max. conductor cross section
(mm²)
2.5
Equipped with
Screwed terminal
Shape
Square
Mounting method
Wall-/ceiling mounting
Width
(mm)
82
Inlet from the rear
Yes
Length
(mm)
82
Depth
(mm)
52
Tackable
No
Number of inlets
8
Type of housing feed-through
Preembossing
Material
Plastic
Halogen free
Yes
Surface protection
Untreated
Colour
Grey
Degree of protection (IP)
IP66
Cover
Not transparent
Cover attachment
Screwed
Sealable
Yes
Rated insulation voltage Ui
(V)
690
Circuit integrity
None
With screening
No
Weatherproof
No
Explosion-tested version
No
For Ex-zone gas
None
For Ex-Zone dust
None
Cover model
Other
Castable
Yes
With casting compound
No
Operating temperature
(°C)
-35 - 80
Mounting in the soil
No
Mounting under water
No
Transparent cover
No
Model
Junction box
Stock and logistics
Height
0.082 m
Width
0.082 m
Depth
0.052 m
Packaging
item
Weight
0.138 kg
HS code
85369095
Country of Origin
DE
