Socomec
49413723
Residual current monitoring relay
Manufacturer part number: 49413723
Serie:
Type: 49413723
EAN-code: 3596032708702
SKU Omnical: 1203632
Stock:
20 items.
Delivery time: 1-2 business days.
InStock
UVK
€
478,60
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
49413723 Socomec Residual current monitoring relay

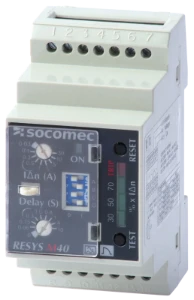

Socomec Residual current monitoring relay RESYS M40 US=115/230VAC
Datasheet
Type of electric connection
Screw connection
Rated control supply voltage at DC
(V)
115 - 230
Voltage type for actuating
AC
Width
(mm)
48
With detachable clamps
No
Function
For AC-current system
Rated voltage
(V)
250 - 250
Rated frequency
(Hz)
47 - 63
Response value amperage 1
(mA)
30 - 30000
Response value amperage 2
(mA)
15 - 15000
Min. adjustable delay-on energization time
(s)
0
Max. permitted delay-on energization time
(s)
10
Indication of difference current
Yes
Error registration possible
No
Number of contacts as change-over contact
2
Height
(mm)
83
Depth
(mm)
63.5
External power supply required
Yes
Voltage type of supply voltage
AC
Rated operation frequency
(Hz)
47 - 63
Current measuring range
(mA)
15 - 30000
Voltage type (operating voltage)
AC
Operating voltage at AC 50 Hz
(V)
400 - 400
Operating voltage at AC 60 Hz
(V)
400 - 400
Rated switch current
(A)
8
Stock and logistics
Height
0.11 m
Width
0.075 m
Depth
0.047 m
Packaging
box
Weight
0.22 kg
HS code
85364900
Country of Origin
GB
