Siemens
6ES75163FN020AB0
PLC CPU-module
Manufacturer part number: 6ES75163FN020AB0
Serie:
Type: CPU 1516F-3 PN/DP, 1,5MB Prog, 5...
EAN-code: 4047623410492
SKU Omnical: 3127221
Stock:
4 items.
Delivery time: 1-2 business days.
InStock
S71
€
10.503,15
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

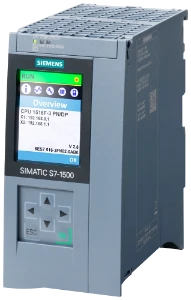

6ES75163FN020AB0 Siemens PLC CPU-module
Siemens PLC CPU-module SIMATIC S7-1500 CPU 1516F-3 PN/DP
Datasheet
Supply voltage DC
(V)
19.2 - 28.8
Voltage type of supply voltage
DC
Number of relay outputs
0
Width
(mm)
70
Model
Modular
Processing time (1K, binary operation)
(ms)
0.01
Number of HW-interfaces industrial Ethernet
2
Number of interfaces PROFINET
2
Number of HW-interfaces RS-232
0
Number of HW-interfaces RS-422
0
Number of HW-interfaces RS-485
1
Number of HW-interfaces USB
0
Number of HW-interfaces parallel
0
Number of HW-interfaces Wireless
0
Number of HW-interfaces other
0
Number of analogue outputs
0
Number of analogue inputs
0
Number of digital inputs
0
Number of digital outputs
0
With optical interface
No
Supporting protocol for TCP/IP
Yes
Supporting protocol for PROFIBUS
Yes
Supporting protocol for CAN
No
Supporting protocol for INTERBUS
No
Supporting protocol for ASI
No
Supporting protocol for KNX
No
Supporting protocol for MODBUS
Yes
Supporting protocol for Data-Highway
No
Supporting protocol for DeviceNet
No
Supporting protocol for SUCONET
No
Supporting protocol for LON
No
Supporting protocol for PROFINET IO
Yes
Supporting protocol for PROFINET CBA
No
Supporting protocol for SERCOS
No
Supporting protocol for Foundation Fieldbus
No
Supporting protocol for EtherNet/IP
No
Supporting protocol for AS-Interface Safety at Work
No
Supporting protocol for DeviceNet Safety
No
Supporting protocol for INTERBUS-Safety
No
Supporting protocol for PROFIsafe
Yes
Supporting protocol for SafetyBUS p
No
Supporting protocol for other bus systems
No
Radio standard Bluetooth
No
Radio standard Wi-Fi 802.11
No
Radio standard GPRS
No
Radio standard GSM
No
Radio standard UMTS
No
IO link master
No
System accessory
Yes
Redundancy
No
With display
Yes
Type of memory
Other
Memory size
(kByte)
6500
Additional program memory possible
No
Rail mounting possible
Yes
Wall mounting/direct mounting
No
Front built-in possible
No
Rack-assembly possible
No
Suitable for safety functions
Yes
Performance level according to EN ISO 13849-1
Level e
Appendant operation agent (Ex ia)
No
Appendant operation agent (Ex ib)
No
Explosion safety category for gas
ATEX gas-ex-protection, Cat. 3G
Explosion safety category for dust
None
Height
(mm)
147
Depth
(mm)
129
SIL according to IEC 61508
3
Stock and logistics
Height
0.083 m
Width
0.156 m
Depth
0.162 m
Packaging
item
Weight
0.596 kg
HS code
85371091
Country of Origin
DE
