Siemens
6ES71366AA000CA1
Fieldbus, decentr. periphery - analogue I/O module
Manufacturer part number: 6ES71366AA000CA1
Serie:
Type: ET 200SP, F-AI 4XI (0)4..20mA HF
EAN-code: 4047623408031
SKU Omnical: 1295237
Stock:
14 items.
Delivery time: 1-2 business days.
InStock
S38
€
761,28
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

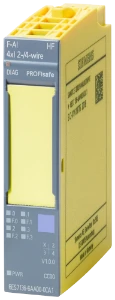

6ES71366AA000CA1 Siemens Fieldbus, decentr. periphery - analogue I/O module
Siemens Fieldbus, decentr. periphery - analogue I/O module SIMATIC ET 200SP F-AI 4xI 0(4)..20mA 2-/4-wire HF
Datasheet
Supply voltage DC
(V)
19.2 - 28.8
Voltage type of supply voltage
DC
Input, current
Yes
Width
(mm)
15
Input, voltage
No
Input, resistor
No
Input, resistance thermometer
No
Input, thermocouple
No
Input signal, configurable
Yes
Resolution of the analogue inputs
(Bit)
16
Number of analogue inputs
4
Number of analogue outputs
0
Analogue inputs configurable
Yes
Number of HW-interfaces industrial Ethernet
0
Number of interfaces PROFINET
0
Number of HW-interfaces RS-232
0
Number of HW-interfaces RS-422
0
Number of HW-interfaces RS-485
0
Number of HW-interfaces serial TTY
0
Number of HW-interfaces parallel
0
Number of HW-interfaces Wireless
0
Number of HW-interfaces other
0
Supporting protocol for TCP/IP
No
Supporting protocol for PROFIBUS
No
Supporting protocol for CAN
No
Supporting protocol for INTERBUS
No
Supporting protocol for ASI
No
Supporting protocol for KNX
No
Supporting protocol for MODBUS
No
Supporting protocol for Data-Highway
No
Supporting protocol for DeviceNet
No
Supporting protocol for SUCONET
No
Supporting protocol for LON
No
Supporting protocol for PROFINET IO
No
Supporting protocol for PROFINET CBA
No
Supporting protocol for SERCOS
No
Supporting protocol for Foundation Fieldbus
No
Supporting protocol for EtherNet/IP
No
Supporting protocol for AS-Interface Safety at Work
No
Supporting protocol for DeviceNet Safety
No
Supporting protocol for INTERBUS-Safety
No
Supporting protocol for PROFIsafe
No
Supporting protocol for SafetyBUS p
No
Supporting protocol for other bus systems
No
Radio standard Bluetooth
No
Radio standard Wi-Fi 802.11
No
Radio standard GPRS
No
Radio standard GSM
No
Radio standard UMTS
No
IO link master
No
System accessory
Yes
Degree of protection (IP)
IP20
Type of electric connection
Plug-in connection
Fieldbus connection over separate bus coupler possible
Yes
Rail mounting possible
Yes
Wall mounting/direct mounting
No
Front built-in possible
No
Rack-assembly possible
Yes
Suitable for safety functions
Yes
Performance level according to EN ISO 13849-1
Level e
Appendant operation agent (Ex ia)
No
Appendant operation agent (Ex ib)
No
Explosion safety category for gas
ATEX gas-ex-protection, Cat. 3G
Explosion safety category for dust
None
Height
(mm)
73
Depth
(mm)
58
SIL according to IEC 61508
3
Number of HW-interfaces USB
0
Stock and logistics
Height
0.027 m
Width
0.068 m
Depth
0.077 m
Packaging
item
Weight
0.061 kg
HS code
85389091
Country of Origin
DE
