Siemens
3SE51320CJ27
End switch
Manufacturer part number: 3SE51320CJ27
Serie:
Type: POS. SWITCH EN50041 PLASTIC, TWI...
EAN-code: 4011209929463
SKU Omnical: 2393361
Stock:
3 items.
Delivery time: 1-2 business days.
InStock
UVK
€
83,59
per item
EUR | Excluding VAT
Quantity
items
Add to cart
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

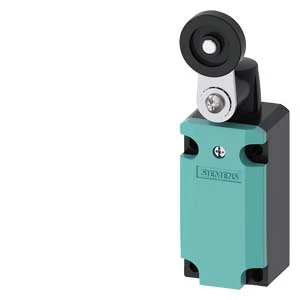

3SE51320CJ27 Siemens End switch
Siemens End switch Position switch, plastic housing 40 mm, EN50041, device connection, 1
Datasheet
Width sensor
(mm)
40
Diameter sensor
(mm)
0
Height of sensor
(mm)
59.3
Length of sensor
(mm)
136
Rated operation current Ie at AC-15, 24 V
(A)
6
Rated operation current Ie at AC-15, 125 V
(A)
6
Rated operation current Ie at AC-15, 230 V
(A)
6
Rated operation current Ie at DC-13, 24 V
(A)
3
Rated operation current Ie at DC-13, 125 V
(A)
0.55
Rated operation current Ie at DC-13, 230 V
(A)
0.27
Switching function
Quick-break switch
Output electronic
No
Forced opening
Yes
Number of safety auxiliary contacts
1
Number of contacts as normally closed contact
1
Number of contacts as normally open contact
1
Number of contacts as change-over contact
0
Type of interface
None
Type of interface for safety communication
None
Construction type housing
Cuboid
Material housing
Plastic
Coating housing
Other
Type of control element
Rotary lever
Alignment of the control element
Roller cam straight
Type of electric connection
Cable entry metrical
With status indication
No
Suitable for safety functions
Yes
Explosion safety category for gas
None
Explosion safety category for dust
None
Ambient temperature during operating
(°C)
-25 - 85
Degree of protection (IP)
IP66/IP67
Switching function latching
No
Degree of protection (NEMA)
12
Stock and logistics
Height
0.148 m
Width
0.043 m
Depth
0.067 m
Packaging
item
Weight
0.139 kg
HS code
85365080
Country of Origin
DE
