Schneider Electric

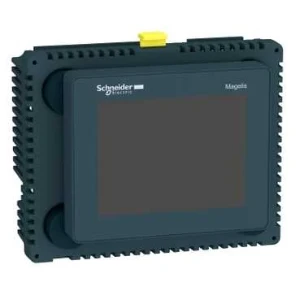

HMISCU6B5
Graphic panel
Manufacturer part number: HMISCU6B5
Serie: Magelis SCU
EAN-code: 3595864175560
SKU Omnical: 2095604
Stock: 0.
Estimated lead time: 10 days *
PreOrder
ZSD
€
847,84
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
HMISCU6B5 Schneider Electric Graphic panel
Schneider Electric Graphic panel Magelis SCU - Touchscreen, bedieningspaneel - 8xDigitale I+U, 4x Analo
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Supply voltage DC
(V)
24 - 24
Voltage type of supply voltage
AC/DC
Number of HW-interfaces industrial Ethernet
1
Number of interfaces PROFINET
0
Number of HW-interfaces RS-232
1
Number of HW-interfaces RS-422
0
Number of HW-interfaces RS-485
1
Number of HW-interfaces serial TTY
0
Number of HW-interfaces USB
2
Number of HW-interfaces parallel
0
Number of HW-interfaces Wireless
0
Number of HW-interfaces other
0
With SW interfaces
Yes
Supporting protocol for TCP/IP
Yes
Supporting protocol for PROFIBUS
No
Supporting protocol for CAN
Yes
Supporting protocol for INTERBUS
No
Supporting protocol for ASI
No
Supporting protocol for KNX
No
Supporting protocol for MODBUS
Yes
Supporting protocol for Data-Highway
No
Supporting protocol for DeviceNet
No
Supporting protocol for SUCONET
No
Supporting protocol for LON
No
Supporting protocol for PROFINET IO
No
Supporting protocol for PROFINET CBA
No
Supporting protocol for SERCOS
No
Supporting protocol for Foundation Fieldbus
No
Supporting protocol for EtherNet/IP
Yes
Supporting protocol for AS-Interface Safety at Work
No
Supporting protocol for DeviceNet Safety
No
Supporting protocol for INTERBUS-Safety
No
Supporting protocol for PROFIsafe
No
Supporting protocol for SafetyBUS p
No
Supporting protocol for other bus systems
No
Radio standard Bluetooth
No
Radio standard Wi-Fi 802.11
No
Radio standard GPRS
No
Radio standard GSM
No
Radio standard UMTS
No
IO link master
Yes
Type of display
LCD
With colour display
Yes
Number of colours of the display
65536
Number of grey-scales/blue-scales of display
0
Screen diagonal
(inch)
3.5
Number of pixels, horizontal
320
Number of pixels, vertical
240
Useful project memory/user memory
(kByte)
128
With numeric keyboard
No
With alpha numeric keyboard
No
Number of function buttons, programmable
0
With touch screen
Yes
With message indication
Yes
With message system (incl. buffer and confirmation)
No
Process value representation (output) possible
Yes
Process default value (input) possible
Yes
With recipes
No
Number of password levels
0
With printer output
No
Number of online languages
4
Additional software components, loadable
Yes
Degree of protection (IP), front side
IP65/IP67
Operating temperature
(°C)
-20 - 60
Rail mounting possible
Yes
Wall mounting/direct mounting
Yes
Suitable for safety functions
No
Width of the front
(mm)
128
Height of the front
(mm)
102
Built-in depth
(mm)
74.95
Number of buttons with LED
0
Number of system buttons
0
Touch technology
Resistive touch
Degree of protection (NEMA), front side
4X
Stock and logistics
Height
11.5 cm
Width
18.6 cm
Depth
27 cm
Packaging
box
Weight
1.1 kg
HS code
8537101090
Country of Origin
CN
