Schneider Electric
CCT15494
Twilight switch for distribution board
Manufacturer part number: CCT15494
Serie: IC
EAN-code: 3606489524562
SKU Omnical: 3076097
Stock: 0.
Estimated lead time: 10 days *
PreOrder
B75
€
363,30
per item
€
319,34
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

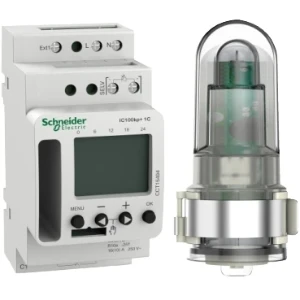

CCT15494 Schneider Electric Twilight switch for distribution board
Schneider Electric Twilight switch for distribution board Acti 9 IC100kp+ 1C (1 - 99000 lux) SMART programmable twilight switch
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Rated voltage
(V)
230
Rated frequency
(Hz)
50 - 60
Max. incandescent lamp load
(W)
2600
Max. load fluorescent lamp
(VA)
2300
Max. load fluorescent lamp (Duo circuit)
(VA)
2300
Max. load fluorescent lamp (parallel compensated)
(VA)
730
Max. switching current (cos phi = 0.6)
(A)
10
Rated switch current
(A)
16
Adjustment range brightness value
(lx)
1 - 99000
With programmable overnight shutoff
Yes
Push button input
Yes
Max. conductor length light sensor
(m)
50
Protection class light sensor
II
Mounting method light sensor
Wall surface mounted
Mounting method
DIN rail
Width in number of modular spacings
2.5
Built-in depth
(mm)
67
Degree of protection (IP)
IP20
Degree of protection (IP) light sensor
IP55
Stock and logistics
Height
8 cm
Width
10 cm
Depth
10.5 cm
Packaging
box
Weight
0.245 kg
HS code
9107000090
