Schneider Electric
CCT15245
Twilight switch for distribution board
Manufacturer part number: CCT15245
Serie: IC
EAN-code: 3606489524555
SKU Omnical: 3076684
Stock: 0.
Estimated lead time: 6 days *
PreOrder
B75
€
311,10
per item
€
273,46
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

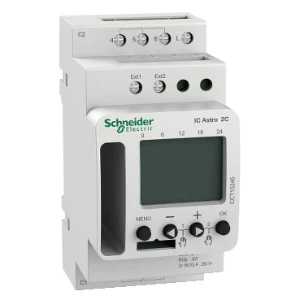

CCT15245 Schneider Electric Twilight switch for distribution board
Schneider Electric Twilight switch for distribution board Acti 9 IC Astro 2C SMART programmable twilight switch
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Rated voltage
(V)
230
Rated frequency
(Hz)
50 - 60
Max. incandescent lamp load
(W)
2600
Max. load fluorescent lamp
(VA)
2300
Max. load fluorescent lamp (Duo circuit)
(VA)
2300
Max. load fluorescent lamp (parallel compensated)
(VA)
730
Max. switching current (cos phi = 0.6)
(A)
10
Rated switch current
(A)
16
With programmable overnight shutoff
Yes
Push button input
Yes
Mounting method
DIN rail
Width in number of modular spacings
2.5
Built-in depth
(mm)
67
Degree of protection (IP)
IP20
Stock and logistics
Height
6.5 cm
Width
8 cm
Depth
10.5 cm
Packaging
box
Weight
0.181 kg
HS code
9107000090
