Schneider Electric
C1047A040
Trip block for power circuit-breaker
Manufacturer part number: C1047A040
Serie: ComPacT NSX, new generation
EAN-code: 3606481994004
SKU Omnical: 4101729
Stock: 0.
Estimated lead time: 11 days *
PreOrder
S72
$
3,644.77
per item
$
2,657.04
per item
USD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

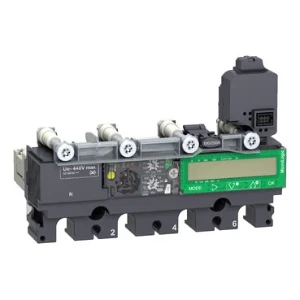

C1047A040 Schneider Electric Trip block for power circuit-breaker
Schneider Electric Trip block for power circuit-breaker ComPacT - Trip unit - NSX100 - AC - 4P4D - 40A - 7.2E-AL
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Overload release current setting
(A)
18 - 40
Initial value of the undelayed short-circuit release - setting range
(A)
60
End value adjustment range undelayed short-circuit release
(A)
600
Rated permanent current Iu
(A)
40
Number of poles
4
Short-circuit release function
Delayed
Voltage type for actuating
AC
Rated control supply voltage at AC 50 Hz
(V)
440 - 440
Rated control supply voltage at AC 60 Hz
(V)
440 - 440
With ground fault protection function
No
Type of motor protection
Electronic release
Stock and logistics
Height
10 cm
Width
11 cm
Depth
15 cm
Packaging
box
Weight
794 g
HS code
8536309000
