Schneider Electric
A9L16299
Surge protection device for power supply systems
Manufacturer part number: A9L16299
Serie: Acti 9 iPF K
EAN-code: 3606480387111
SKU Omnical: 2086978
Stock: 0.
Estimated lead time: 17 days *
PreOrder
ZZL
€
252,80
per item
€
171,65
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

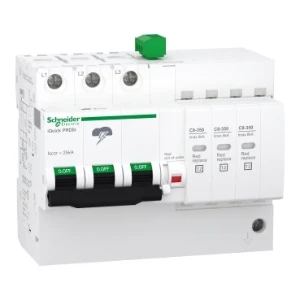

A9L16299 Schneider Electric Surge protection device for power supply systems
Schneider Electric Surge protection device for power supply systems iQuick PRD 8r - Overspanningsbeveiliging - Met patroon 3P - In=2kA - T
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
System configuration
TN-S, TT
Type of poles
3
Nominal discharge surge current (8/20)
(kA)
2
Nominal voltage AC
(V)
400
Max. continuous voltage AC
(V)
350
Voltage protection level
(kV)
1.2
Voltage protection level L-N
(kV)
1.2
Voltage protection level N-PE
(kV)
1.2
Mounting method
DIN rail (top hat rail) 35 mm
Construction size
Other
Max. conductor cross section solid (solid, stranded)
(mm²)
25
Max. conductor cross section flexible (fine-strand)
(mm²)
25
With remote signalling contact
Yes
Integrated backup fuse
No
Signalling at the device
Optic
Category type 2
Yes
Short-circuit-proof
Yes
Degree of protection (IP)
IP20
System configuration DC
No
System configuration IT
Yes
System configuration TN
No
System configuration TN-C
Yes
System configuration TN-C-S
No
System configuration TN-S
No
System configuration TT
No
System configuration other
No
Number of conductors (without earthing)
3
Short-circuit breaking capacity (Isccr)
(kA)
25
Max. discharge surge current (8/20)
(kA)
8
Integrated short-circuit protection
Yes
Leakage-current free
No
Stock and logistics
Height
9.2 cm
Width
10 cm
Depth
14.8 cm
Packaging
box
Weight
0.74 kg
HS code
8536303099
Country of Origin
DE
