Schneider Electric

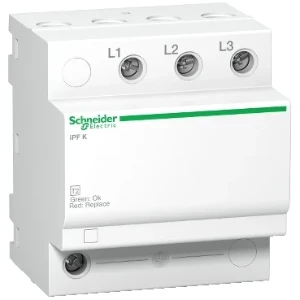

A9L15597
Surge protection device for power supply systems
Manufacturer part number: A9L15597
Serie: Acti 9 iPF K
EAN-code: 3606480089930
SKU Omnical: 2086960
Stock: 0.
Estimated lead time: 10 days *
PreOrder
ZZL
€
188,60
per item
€
128,06
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
A9L15597 Schneider Electric Surge protection device for power supply systems
Schneider Electric Surge protection device for power supply systems iPF K 20 - Overspanningsbeveiliging - Vast 3P - In=5kA - Type 2
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
System configuration
TN-C
Type of poles
3
Nominal discharge surge current (8/20)
(kA)
5
Nominal voltage AC
(V)
400
Max. continuous voltage AC
(V)
340
Voltage protection level
(kV)
1.1
Voltage protection level N-PE
(kV)
1.2
Mounting method
DIN rail (top hat rail) 35 mm
Construction size
4 modular spacing
Max. conductor cross section solid (solid, stranded)
(mm²)
16
Max. conductor cross section flexible (fine-strand)
(mm²)
10
With remote signalling contact
No
Integrated backup fuse
No
Signalling at the device
Optic
Category type 2
Yes
Short-circuit-proof
Yes
Degree of protection (IP)
IP20
System configuration DC
No
System configuration IT
No
System configuration TN
No
System configuration TN-C
Yes
System configuration TN-C-S
No
System configuration TN-S
No
System configuration TT
No
System configuration other
No
Number of conductors (without earthing)
3
Max. discharge surge current (8/20)
(kA)
20
Max. overcurrent protection device, parallel connection (fuse)
(A)
40
Max. overcurrent protection device, series connection (fuse)
(A)
40
Integrated short-circuit protection
No
Leakage-current free
No
Stock and logistics
Height
7.5 cm
Width
8 cm
Depth
8.5 cm
Packaging
box
Weight
0.36 kg
HS code
8536303099
Country of Origin
CN
