Schneider Electric
A9F78210
Miniature circuit breaker (MCB)
Manufacturer part number: A9F78210
Serie: Acti9 iC60
EAN-code: 3606480092770
SKU Omnical: 2086480
Stock:
56 items.
Delivery time: 1-2 business days.
InStock
XHD
€
57,40
per item
€
36,51
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

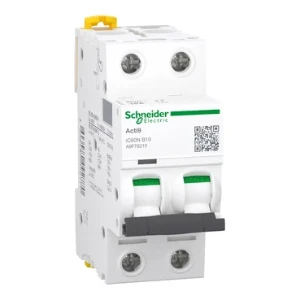

A9F78210 Schneider Electric Miniature circuit breaker (MCB)
Schneider Electric Miniature circuit breaker (MCB) iC60N - Installatieautomaat 2P - In=10A - B-Karakteristiek
Datasheet
Release characteristic
B
Number of poles (total)
2
Rated current
(A)
10
Rated voltage
(V)
400
Voltage type
AC/DC
Current limiting class
3
Concurrently switching neutral conductor
No
Over voltage category
4
Pollution degree
3
Width in number of modular spacings
2
Built-in depth
(mm)
44.5
Additional equipment possible
Yes
Degree of protection (IP)
IP20
Number of protected poles
2
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
(kA)
6
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
(kA)
6
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
(kA)
20
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
(kA)
10
Frequency
(Hz)
50 - 60
Suitable for flush-mounted installation
No
Rated insulation voltage Ui
(V)
500
Rated impulse withstand voltage Uimp
(kV)
6
Ambient temperature during operating
(°C)
-35 - 70
Connectable conductor cross section multi-wired
(mm²)
1 - 16
Connectable conductor cross section solid-core
(mm²)
1 - 25
Explosion-proof
No
Flush-mounted installation
No
Stock and logistics
Height
3.5 cm
Width
7.5 cm
Depth
9.5 cm
Packaging
box
Weight
0.212 kg
HS code
8536201090
Country of Origin
FR
