Schneider Electric
8455051000
Electric servomotor
Manufacturer part number: 8455051000
Serie: Forta
EAN-code: 3606489659042
SKU Omnical: 3076915
Stock: 0.
Estimated lead time: 6 days *
PreOrder
XHW
€
207,30
per item
€
168,74
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

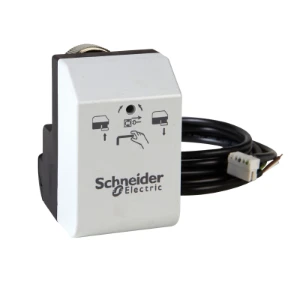

8455051000 Schneider Electric Electric servomotor
Schneider Electric Electric servomotor Mz20a55 servm.24v selct. 0 10v
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Suitable for valve
Yes
Suitable for air accessory
Yes
Supply voltage
24 V AC
Control signal
Other
Model
Linear
Width
(mm)
92
Type of regulation
Split range
Length of connection cable
(m)
1.5
Transmission
Magnetic
Connection to stop valve
M30 x 1.5
With top flange direct mount according to ISO 5211
No
Return at zero supply voltage
No
Deactivated when closed
No
Automatic travel recognition
Yes
Adjustable position feedback signal
Yes
Auxiliary contacts
No
Position reporting system
None
Auxiliary contacts optional
No
End contacts
1
Adjustable operating range
Yes
With mechanical setting indicator
No
Suitable for manual operation
Yes
Operating time
(s)
100
Potential free switch contact
No
Adjusting force
(N)
200
Stroke length
(mm)
6.5
Self-adjusting travel length
Yes
With safety function
Yes
Level of protection (IP value)
44
Max. electric power input
(VA)
1.2
Allowable relative humidity
(%)
5 - 95
Allowable ambient temperature
(°C)
-5 - 55
Height
(mm)
82
Explosion-proof
No
Depth
(mm)
76.5
Material housing
Plastic
Energy consumption in operation
(W)
1
Regulation type on/off
Yes
Regulation type modulating
Yes
Regulation type splitrange
No
Type of safety function
Other
Principle of operation safety function
Other
Degree of protection (NEMA)
3
Degree of protection (IP)
IP43
Ambient temperature
(°C)
-5 - 55
Stock and logistics
Height
12 cm
Width
9.4 cm
Depth
7.8 cm
Packaging
box
Weight
0.261 kg
HS code
8501109190
