Prolumia
40281001
Ceiling-/wall luminaire
Manufacturer part number: 40281001
Serie:
Type: 40281001
EAN-code: 8720604744781
SKU Omnical: 1271636
Stock: 0.
Estimated lead time: 5 days *
PreOrder
ZDZ
€
62,00
per item
€
50,47
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

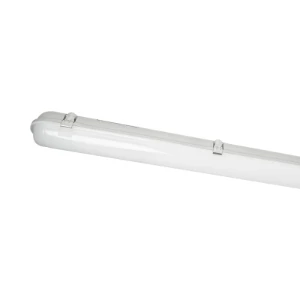

40281001 Prolumia Ceiling-/wall luminaire
Prolumia Ceiling-/wall luminaire Pro Aqua II (IP65)664mm, 9,2W,1200Lm,4000K,Ra>80
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Suitable for suspended mounting
No
Suitable for ceiling mounting
Yes
Suitable for built-in mounting
No
Suitable for surface mounting
Yes
Width
(mm)
90
Lamp type
LED not exchangeable
With light source
Yes
Lamp holder
Other
Type of control gear
LED operating device current-controlled
With control gear
Yes
Suitable for emergency lighting
No
Nominal voltage
(V)
180 - 265
Colour temperature
(K)
4000 - 4000
Material housing
Plastic
Colour housing
Grey
Suitable for light line configuration
No
Material cover
Plastic, opal
Suitable for workplace according to EN 12464-1
No
Type of grid
None
Light sharing
Symmetric
Beam angle
Extreme wide beam >80°
Light outlet
Direct
Length
(mm)
664
Height/depth
(mm)
90
With movement sensor
No
With light sensor
No
Protection class
II
Degree of protection (IP)
IP65
Impact strength
IK09
Covering of the luminaire with thermally insulating material possible
No
Max. system power
(W)
9
With air slots
No
Voltage type
AC/DC
Rated luminous flux according to IEC 62722-2-1
(lm)
1200
Colour of light
White
Colour rendering index CRI
80-89
Surface protection housing
Other
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming potentiometer (integrated)
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off
No
Dimming phase cut-on
No
Dimming programmable
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
Operation by Bluetooth
No
No dim function
No
Light distributor
Diffuser lens/optic/panel
Colour consistency (McAdam ellipse)
SDCM3
Rated life time L70/B50 at 25 °C
(h)
50000
Rated ambient temperature according to IEC62722-2-1
(°C)
-25 - 50
Emergency power supply integrated
No
Luminaire efficacy
(lm/W)
130.5
Power factor
0.8
Type of wiring
Ending
Connection type
Push-in clamp
Unified Glare Ratio (UGR)
23
Suitable for wall mounting
No
Stock and logistics
Height
95 mm
Width
98 mm
Depth
683 mm
Packaging
box
Weight
1260 g
HS code
9405114090
