Prolumia
40009903
Ceiling-/wall luminaire
Manufacturer part number: 40009903
Serie:
Type: 40009903
EAN-code: 8720604744040
SKU Omnical: 1701629
Stock: 0.
Estimated lead time: 5 days *
PreOrder
ZDZ
€
57,00
per item
€
46,40
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

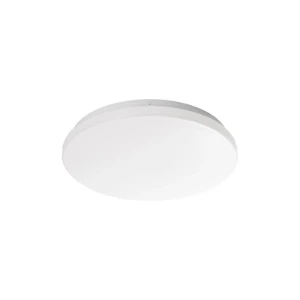

40009903 Prolumia Ceiling-/wall luminaire
Prolumia Ceiling-/wall luminaire LED Ecodisc II mini met sensor
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Suitable for suspended mounting
No
Suitable for ceiling mounting
Yes
Suitable for built-in mounting
No
Suitable for surface mounting
Yes
Lamp type
LED not exchangeable
With light source
Yes
Lamp holder
Other
Type of control gear
LED operating device current-controlled
With control gear
Yes
Suitable for emergency lighting
No
Nominal voltage
(V)
230 - 230
Nominal current
(mA)
115 - 115
Colour temperature
(K)
3000 - 6500
Material housing
Steel
Colour housing
White
Suitable for light line configuration
No
Material cover
Plastic, opal
Suitable for workplace according to EN 12464-1
No
Type of grid
None
Light sharing
Symmetric
Beam angle
Extreme wide beam >80°
Light outlet
Direct
Height/depth
(mm)
57
Outer diameter
(mm)
265
With movement sensor
Yes
With light sensor
No
Protection class
I
Degree of protection (IP)
IP44
Impact strength
IK03
Covering of the luminaire with thermally insulating material possible
No
Max. system power
(W)
13.5
With air slots
No
Voltage type
AC
Rated luminous flux according to IEC 62722-2-1
(lm)
1100
Colour of light
White
Colour rendering index CRI
80-89
Surface protection housing
Lacquered
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming potentiometer (integrated)
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off
No
Dimming phase cut-on
No
Dimming programmable
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
Operation by Bluetooth
No
No dim function
Yes
Light distributor
Diffuser lens/optic/panel
Colour consistency (McAdam ellipse)
SDCM3
Rated ambient temperature according to IEC62722-2-1
(°C)
-20 - 40
Emergency power supply integrated
No
Luminaire efficacy
(lm/W)
90
Power factor
0.9
Type of wiring
Ending
Number of poles
3
Conductor cross section
(mm²)
1.5
Connection type
Push-in clamp
Dimming DALI-2
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Exchangeable control gear
No
Colour temperature adjustable
Positions
Luminous flux adjustable
No
Beam angle adjustable
No
Suitable for wall mounting
Yes
Stock and logistics
Height
70 mm
Width
400 mm
Depth
400 mm
Packaging
box
Weight
900 g
HS code
9405114090
