Prolumia
40009378
Ceiling-/wall luminaire
Manufacturer part number: 40009378
Serie:
Type: 40009378
EAN-code: 8720604743838
SKU Omnical: 1701626
Stock: 0.
Estimated lead time: 14 days *
PreOrder
ZDZ
€
184,50
per item
€
150,18
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

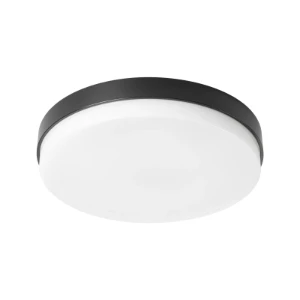

40009378 Prolumia Ceiling-/wall luminaire
Prolumia Ceiling-/wall luminaire Prodisc III, zwart, Ø335, Nood+MW sensor, 17,5W, 3000K/4000K schakelba
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Suitable for suspended mounting
No
Suitable for ceiling mounting
Yes
Suitable for built-in mounting
No
Suitable for surface mounting
Yes
Lamp type
LED not exchangeable
With light source
Yes
Lamp holder
Other
Type of control gear
LED operating device current-controlled
With control gear
Yes
Suitable for emergency lighting
Yes
Nominal voltage
(V)
220 - 240
Colour temperature
(K)
3000 - 4000
Material housing
Plastic
Colour housing
Black
Suitable for light line configuration
No
Material cover
Plastic, opal
Suitable for workplace according to EN 12464-1
No
Type of grid
None
Light sharing
Symmetric
Beam angle
Extreme wide beam >80°
Light outlet
Direct
Height/depth
(mm)
63
Outer diameter
(mm)
335
With movement sensor
Yes
With light sensor
Yes
Protection class
II
Degree of protection (IP)
IP44
Impact strength
IK10
Covering of the luminaire with thermally insulating material possible
No
Max. system power
(W)
17.5
With air slots
No
Voltage type
AC
Rated luminous flux according to IEC 62722-2-1
(lm)
1700
Colour of light
White
Colour rendering index CRI
80-89
Surface protection housing
Other
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming potentiometer (integrated)
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off
No
Dimming phase cut-on
No
Dimming programmable
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
Operation by Bluetooth
No
No dim function
Yes
Light distributor
Diffuser lens/optic/panel
Colour consistency (McAdam ellipse)
SDCM3
Rated life time L70/B50 at 25 °C
(h)
175000
Rated ambient temperature according to IEC62722-2-1
(°C)
-10 - 40
Emergency power supply integrated
Yes
Filament test according to IEC 60695-2-11
650 °C - 30 s
Luminaire efficacy
(lm/W)
95
Power factor
0.9
Type of wiring
Ending
Number of poles
3
Connection type
Push-in clamp
Dimming DALI-2
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Exchangeable control gear
No
Lumen maintenance at median useful life of 35,000 h at 25 °C ambient (tq)
(%)
95
Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq)
(%)
93
Lumen maintenance at median useful life of 75,000 h at 25 °C ambient (tq)
(%)
89
Max. number of luminaires per miniature circuit breaker B16
55
Max. number of luminaires per miniature circuit breaker C16
110
Colour temperature adjustable
Positions
Luminous flux adjustable
Positions
Beam angle adjustable
No
Suitable for wall mounting
Yes
Compatible with Casambi
No
Stock and logistics
Height
70 mm
Width
343 mm
Depth
343 mm
Packaging
box
Weight
1250 g
HS code
9405114090
