Prolumia
40009077
Ceiling-/wall luminaire
Manufacturer part number: 40009077
Serie:
Type: 40009077
EAN-code: 8720615508594
SKU Omnical: 1701627
Stock: 0.
Estimated lead time: 84 days *
PreOrder
ZDZ
€
180,50
per item
€
146,93
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
40009077 Prolumia Ceiling-/wall luminaire

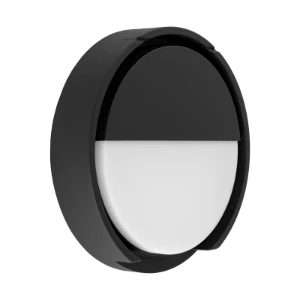

Prolumia Ceiling-/wall luminaire Rockdisc III, half + nood, Ø340mm, 24W, 1600Lm, 3000K/4000K
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Suitable for suspended mounting
No
Suitable for ceiling mounting
Yes
Suitable for built-in mounting
No
Suitable for surface mounting
Yes
Lamp type
LED exchangeable
With light source
Yes
Lamp holder
Other
Type of control gear
LED operating device current-controlled
With control gear
Yes
Suitable for emergency lighting
Yes
Nominal voltage
(V)
220 - 240
Nominal current
(mA)
130 - 130
Colour temperature
(K)
3000 - 4000
Material housing
Aluminium
Colour housing
Black
Suitable for light line configuration
No
Material cover
Plastic, opal
Suitable for workplace according to EN 12464-1
No
Type of grid
None
Light sharing
Symmetric
Beam angle
Open beam/diffuse
Light outlet
Direct
Height/depth
(mm)
83
Outer diameter
(mm)
340
With movement sensor
No
With light sensor
No
Protection class
I
Degree of protection (IP)
IP66
Impact strength
IK10
Luminaire with limited surface temperature, sign "D“
No
Covering of the luminaire with thermally insulating material possible
Yes
Max. system power
(W)
23.5
With air slots
No
Voltage type
AC
Rated luminous flux according to IEC 62722-2-1
(lm)
1600
Colour of light
White
Colour rendering index CRI
80-89
Surface protection housing
Powder coating
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming potentiometer (integrated)
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off
No
Dimming phase cut-on
No
Dimming programmable
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
Operation by Bluetooth
No
No dim function
Yes
Light distributor
Diffuser lens/optic/panel
Colour consistency (McAdam ellipse)
SDCM3
Rated life time L70/B50 at 25 °C
(h)
170000
Degree of protection (NEMA)
Other
Rated ambient temperature according to IEC62722-2-1
(°C)
-10 - 50
Emergency power supply integrated
Yes
Luminaire efficacy
(lm/W)
68
Power factor
0.92
Type of wiring
Suitable for through wiring
Number of poles
3
Connection type
Push-in clamp
Total harmonic distortion
0.18
Photobiological safety according to EN 62471
RG0
Unified Glare Ratio (UGR)
30
Luminous intensity
(cd)
450
Dimming DALI-2
No
Flickering value Pst LM
1
Stroboscope effect value SVM
0.2
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Exchangeable control gear
Yes
Lumen maintenance at median useful life of 35,000 h at 25 °C ambient (tq)
(%)
0.931
Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq)
(%)
0.902
Lumen maintenance at median useful life of 75,000 h at 25 °C ambient (tq)
(%)
0.855
Failure rate at median useful life of 35,000 h at 25 °C ambient (tq)
(%)
0.069
Failure rate at median useful life of 50,000 h at 25 °C ambient (tq)
(%)
0.098
Failure rate at median useful life of 75,000 h at 25 °C ambient (tq)
(%)
0.145
Max. number of luminaires per miniature circuit breaker B16
41
Max. number of luminaires per miniature circuit breaker C16
82
Constant light output (CLO)
No
Colour temperature adjustable
Positions
Luminous flux adjustable
Positions
Beam angle adjustable
No
Suitable for wall mounting
Yes
Stock and logistics
Height
90 mm
Width
345 mm
Depth
350 mm
Packaging
box
Weight
1680 g
HS code
9405499090
