Prolumia
40007946
Ceiling-/wall luminaire
Manufacturer part number: 40007946
Serie:
Type: 40007946
EAN-code: 8719689122195
SKU Omnical: 1251849
Stock: 0.
Estimated lead time: 7 days *
PreOrder
ZDZ
€
322,00
per item
€
262,11
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

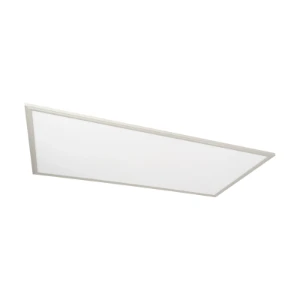

40007946 Prolumia Ceiling-/wall luminaire
Prolumia Ceiling-/wall luminaire LED I-panel, 4000K, RA>80, 1195x595 constant current 2100mA, ex driver
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Suitable for suspended mounting
Yes
Suitable for ceiling mounting
Yes
Suitable for built-in mounting
Yes
Suitable for surface mounting
No
Width
(mm)
595
Lamp type
LED not exchangeable
With light source
Yes
Lamp holder
Other
Type of control gear
LED operating device current-controlled
With control gear
No
Suitable for emergency lighting
No
Nominal current
(mA)
2100 - 2100
Colour temperature
(K)
4000 - 4000
Material housing
Aluminium
Colour housing
White
Suitable for light line configuration
No
Material cover
Plastic, opal
Suitable for workplace according to EN 12464-1
No
Type of grid
None
Light sharing
Symmetric
Beam angle
Extreme wide beam >80°
Light outlet
Direct
Length
(mm)
1195
Height/depth
(mm)
13.5
Built-in length
(mm)
1195
Built-in width
(mm)
595
Built-in height/depth
(mm)
10.4
With movement sensor
No
With light sensor
No
Protection class
II
Degree of protection (IP)
IP52
Covering of the luminaire with thermally insulating material possible
No
Max. system power
(W)
85
With air slots
No
Voltage type
AC
Rated luminous flux according to IEC 62722-2-1
(lm)
8500
Colour of light
White
Colour rendering index CRI
80-89
Surface protection housing
Lacquered
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
Yes
Dimming DMX
No
Dimming DSI
No
Dimming potentiometer (integrated)
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off
No
Dimming phase cut-on
No
Dimming programmable
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
Operation by Bluetooth
No
No dim function
No
Light distributor
Diffuser lens/optic/panel
Rated life time L70/B50 at 25 °C
(h)
50000
Degree of protection (NEMA)
1
Rated ambient temperature according to IEC62722-2-1
(°C)
-20 - 50
Emergency power supply integrated
No
Luminaire efficacy
(lm/W)
100
Power factor
0.9
Type of wiring
Ending
Total harmonic distortion
0.2
Unified Glare Ratio (UGR)
19
Suitable for wall mounting
No
Stock and logistics
Height
60 mm
Width
1345 mm
Depth
655 mm
Packaging
box
Weight
8500 g
HS code
9405119090
