Prolumia
40003101
Ceiling-/wall luminaire
Manufacturer part number: 40003101
Serie:
Type: 40003101
EAN-code: 8719325158250
SKU Omnical: 1944072
Stock: 0.
Estimated lead time: 5 days *
PreOrder
ZDZ
€
188,00
per item
€
153,03
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
40003101 Prolumia Ceiling-/wall luminaire

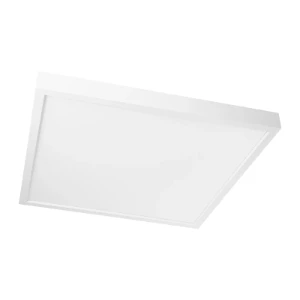

Prolumia Ceiling-/wall luminaire Pro-Ceiling 596x596x48mm, opbouw, 40W, 4200K, wit
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Suitable for suspended mounting
No
Suitable for ceiling mounting
Yes
Suitable for built-in mounting
No
Suitable for surface mounting
Yes
Width
(mm)
596
Lamp type
LED not exchangeable
With light source
Yes
Lamp holder
Other
Type of control gear
LED operating device current-controlled
With control gear
Yes
Suitable for emergency lighting
No
Nominal voltage
(V)
220 - 240
Nominal current
(mA)
950 - 950
Colour temperature
(K)
4200 - 4200
Material housing
Aluminium
Colour housing
White
Suitable for light line configuration
No
Material cover
Plastic, opal
Suitable for workplace according to EN 12464-1
No
Type of grid
None
Light sharing
Symmetric
Beam angle
Extreme wide beam >80°
Light outlet
Direct
Length
(mm)
596
Height/depth
(mm)
48
With movement sensor
No
With light sensor
No
Protection class
II
Degree of protection (IP)
IP40
Impact strength
IK08
Covering of the luminaire with thermally insulating material possible
No
Max. system power
(W)
40
With air slots
No
Voltage type
AC
Rated luminous flux according to IEC 62722-2-1
(lm)
3670
Colour of light
White
Colour rendering index CRI
80-89
Surface protection housing
Lacquered
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming potentiometer (integrated)
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off
No
Dimming phase cut-on
No
Dimming programmable
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
Operation by Bluetooth
No
No dim function
Yes
Light distributor
Diffuser lens/optic/panel
Colour consistency (McAdam ellipse)
SDCM4
Rated life time L70/B50 at 25 °C
(h)
50000
Rated ambient temperature according to IEC62722-2-1
(°C)
-10 - 40
Emergency power supply integrated
No
Luminaire efficacy
(lm/W)
92
Power factor
0.9
Type of wiring
Ending
Connection type
Screwed terminal
Unified Glare Ratio (UGR)
22
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Colour temperature adjustable
No
Luminous flux adjustable
No
Beam angle adjustable
No
Suitable for wall mounting
Yes
Stock and logistics
Height
97 mm
Width
650 mm
Depth
650 mm
Packaging
box
Weight
5900 g
HS code
9405119090
