Pilz
502221
Magnetic proximity switch
Manufacturer part number: 502221
Serie: PSENmag
Type: Mag
EAN-code: 4046548026900
SKU Omnical: 1020620
Stock:
30 items.
Delivery time: 1-2 business days.
InStock
AUV
€
72,77
per item
EUR | Excluding VAT
Quantity
items
Add to cart
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
502221 Pilz Magnetic proximity switch

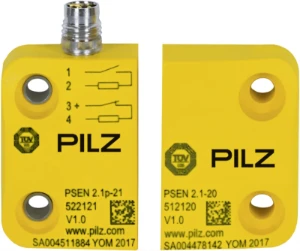

Pilz Magnetic proximity switch PSEN 2.1p-21/PSEN 2.1-20 /8mm/LED/1unit
Datasheet
Number of protected contact energized outputs
2
Type of actuation
Magnet
Type of electric connection
Connector M8
Type of switching output
Dry reed contact
Width sensor
(mm)
36
Height of sensor
(mm)
26
Length of sensor
(mm)
13
Construction type housing
Special construction
Material housing
Plastic
Protected switch distance OFF
(mm)
8
Protected switch distance ON
(mm)
26
Performance level according to EN ISO 13849-1
Level e
Ambient temperature
(°C)
-10 - 55
Mechanical mounting condition for sensor
Not flat
Suitable for safety functions
Yes
Degree of protection (IP)
IP67
With status indication
Yes
Stock and logistics
Packaging
item
Weight
0.062 kg
HS code
85365019
Country of Origin
CH
