Phoenix Contact
3212138

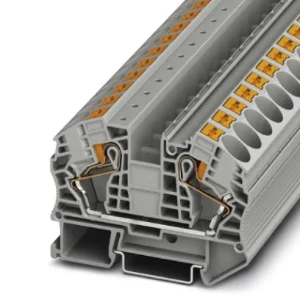

Feed-through terminal block
Manufacturer part number: 3212138
Serie: Aansluitklem
Type: PT 16 N
EAN-code: 4046356494823
SKU Omnical: 1171113
Stock:
807 items.
Delivery time: 1-2 business days.
InStock
ZTW
€
268,85
per 100 items
€
226,64
per 100 items
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
3212138 Phoenix Contact Feed-through terminal block
Phoenix Contact Feed-through terminal block PT 16 N
Datasheet
Connectable conductor cross section fine-strand without cable end sleeve
(mm²)
0.5 - 25
Connectable conductor cross section fine-strand with cable end sleeve
(mm²)
0.5 - 0.5
Connectable conductor cross section solid-core
(mm²)
0.5 - 25
Rated current In
(A)
76
Width
(mm)
12.2
Rated voltage
(V)
1000
Type of electrical connection 1
Other
Type of electrical connection 2
Other
Number of levels
1
Number of clamp positions per level
2
Mounting method
DIN rail (top hat rail) 35 mm
Material insulation body
Other
Operating temperature
(°C)
-60 - 110
Inflammability class of insulation material according to with UL94
V0
Width/grid dimension
(mm)
12.2
Height at lowest possible mounting height
(mm)
52.6
Length
(mm)
75.4
Explosion-tested version 'Ex e'
Yes
Closing plate required
Yes
Colour
Grey
Internally connected stages
Yes
Height
(mm)
75.4
Depth
(mm)
52.6
Stock and logistics
Height
0.057 m
Width
0.169 m
Depth
0.313 m
Packaging
box
Weight
0.031 kg
HS code
85369010
Country of Origin
PL
