Phoenix Contact
3118203
Fuse terminal block
Manufacturer part number: 3118203
Serie: Zekeringsaansluitklem
Type: UK 6-FSI/C
EAN-code: 4017918100605
SKU Omnical: 1016308
Stock:
490 items.
Delivery time: 1-2 business days.
InStock
ZTV
$
1,414.36
per 100 items
$
1,192.30
per 100 items
USD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

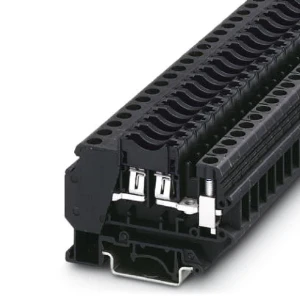

3118203 Phoenix Contact Fuse terminal block
Phoenix Contact Fuse terminal block UK 6-FSI/C
Datasheet
Type of fuse holder
Pluggable
Width
(mm)
8.15
Connectable conductor cross section fine-strand without cable end sleeve
(mm²)
0.2 - 6
Connectable conductor cross section fine-strand with cable end sleeve
(mm²)
0.25 - 6
Connectable conductor cross section solid-core
(mm²)
0.2 - 10
Connectable conductor cross section multi-wired
(mm²)
0.2 - 2.5
Rated voltage
(V)
250
Type of electrical connection 1
Screw connection
Number of levels
1
Mounting method
DIN rail (top hat rail) 35 mm
Material insulation body
Other
Operating temperature
(°C)
105 - 105
Inflammability class of insulation material according to with UL94
V0
Width/grid dimension
(mm)
8.2
Height at lowest possible mounting height
(mm)
58.8
Length
(mm)
64
Closing plate required
No
Colour
Black
Height
(mm)
64.2
Depth
(mm)
46.728
Stock and logistics
Height
0.064 m
Width
0.113 m
Depth
0.312 m
Packaging
box
Weight
0.021 kg
HS code
85369095
Country of Origin
PL
