Phoenix Contact
3010123

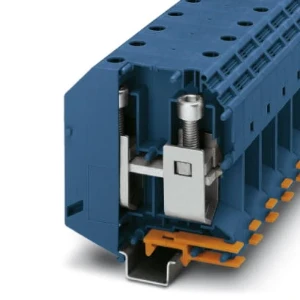

Feed-through terminal block
Manufacturer part number: 3010123
Serie: Klem voor hoge stromen
Type: UKH 150 BU
EAN-code: 4017918091859
SKU Omnical: 1101297
Stock: 0.
Estimated lead time: 5 days *
PreOrder
ZTV
€
3.680,04
per 100 items
€
3.102,27
per 100 items
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
3010123 Phoenix Contact Feed-through terminal block
Phoenix Contact Feed-through terminal block UKH 150 BU
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Connectable conductor cross section fine-strand without cable end sleeve
(mm²)
50 - 150
Connectable conductor cross section fine-strand with cable end sleeve
(mm²)
50 - 50
Connectable conductor cross section solid-core
(mm²)
35 - 150
Connectable conductor cross section multi-wired
(mm²)
25 - 50
Rated current In
(A)
309
Width
(mm)
31
Rated voltage
(V)
1000
Type of electrical connection 1
Screw connection
Type of electrical connection 2
Screw connection
Number of levels
1
Number of clamp positions per level
2
Mounting method
DIN rail (top hat rail) 35 mm
Material insulation body
Other
Operating temperature
(°C)
-60 - 110
Inflammability class of insulation material according to with UL94
V0
Width/grid dimension
(mm)
31
Height at lowest possible mounting height
(mm)
107.3
Length
(mm)
100
Explosion-tested version 'Ex e'
Yes
Closing plate required
No
Colour
Blue
Internally connected stages
Yes
Height
(mm)
100
Depth
(mm)
107.3
Stock and logistics
Height
0.111 m
Width
0.123 m
Depth
0.349 m
Packaging
box
Weight
0.38 kg
HS code
85369010
Country of Origin
IN
