Phoenix Contact
2920272

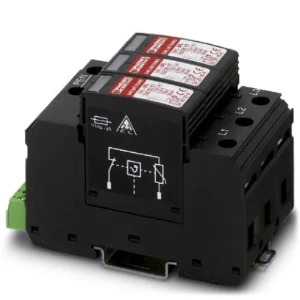

Surge protection device for power supply systems
Manufacturer part number: 2920272
Serie: Overspanningsbeveiliging Type 2
Type: VAL-MS 750/30/3+0-FM
EAN-code: 4046356157896
SKU Omnical: 2164308
Stock: 0.
Estimated lead time: 11 days *
PreOrder
ZCQ
€
313,43
per item
€
275,50
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
2920272 Phoenix Contact Surge protection device for power supply systems
Phoenix Contact Surge protection device for power supply systems VAL-MS 750/30/3+0-FM
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
System configuration
TN-C
Type of poles
3
Nominal discharge surge current (8/20)
(kA)
15
Nominal voltage AC
(V)
554
Max. continuous voltage AC
(V)
760
Voltage protection level
(kV)
2.9
Voltage protection level N-PE
(kV)
2.9
Mounting method
DIN rail (top hat rail) 35 mm
Construction size
3 modular spacing
Max. conductor cross section solid (solid, stranded)
(mm²)
35
With remote signalling contact
Yes
Signalling at the device
Optic
Category type 2
Yes
Degree of protection (IP)
IP20
Stock and logistics
Height
0.082 m
Width
0.059 m
Depth
0.109 m
Packaging
box
Weight
0.409 kg
HS code
85363030
Country of Origin
DE
