Phoenix Contact
2920243

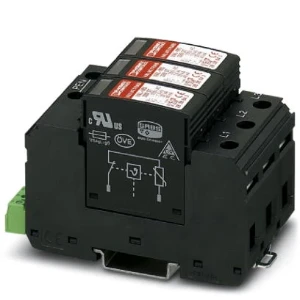

Surge protection device for power supply systems
Manufacturer part number: 2920243
Serie: Overspanningsbeveiliging Type 2
Type: VAL-MS 320/3+0-FM
EAN-code: 4046356157087
SKU Omnical: 2164318
Stock: 0.
Estimated lead time: 11 days *
PreOrder
ZCQ
€
288,44
per item
€
253,54
per item
EUR | Excluding VAT
Quantity
items
Add to cart
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
2920243 Phoenix Contact Surge protection device for power supply systems
Phoenix Contact Surge protection device for power supply systems VAL-MS 320/3+0-FM
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
System configuration
TN-C
Type of poles
3
Nominal discharge surge current (8/20)
(kA)
20
Nominal voltage AC
(V)
240
Max. continuous voltage AC
(V)
335
Voltage protection level
(kV)
1.5
Voltage protection level L-N
(kV)
1.5
Voltage protection level N-PE
(kV)
1.5
Mounting method
DIN rail (top hat rail) 35 mm
Construction size
Other
Max. conductor cross section solid (solid, stranded)
(mm²)
1.5
Max. conductor cross section flexible (fine-strand)
(mm²)
25
With remote signalling contact
Yes
Signalling at the device
Optic
Category type 2
Yes
Degree of protection (IP)
IP20
System configuration DC
No
System configuration IT
No
System configuration TN
No
System configuration TN-C
Yes
System configuration TN-C-S
No
System configuration TN-S
No
System configuration TT
No
System configuration other
No
Short-circuit breaking capacity (Isccr)
(kA)
25
Leakage-current free
No
Stock and logistics
Height
0.082 m
Width
0.059 m
Depth
0.109 m
Packaging
box
Weight
0.353 kg
HS code
85363030
Country of Origin
DE
