Phoenix Contact
2905348
Surge protection device for power supply systems
Manufacturer part number: 2905348
Serie: Overspanningsbeveiliging Type 2
Type: VAL-SEC-T2-1S-175-FM
EAN-code: 4046356948036
SKU Omnical: 2165022
Stock: 0.
Estimated lead time: 5 days *
PreOrder
ZCQ
€
200,25
per item
€
176,02
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

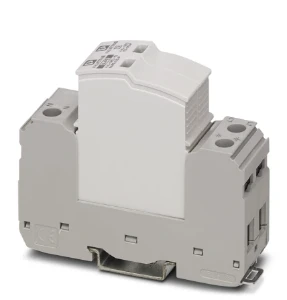

2905348 Phoenix Contact Surge protection device for power supply systems
Phoenix Contact Surge protection device for power supply systems VAL-SEC-T2-1S-175-FM
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
System configuration
TN-S
Type of poles
Other
Nominal discharge surge current (8/20)
(kA)
20
Max. continuous voltage AC
(V)
175
Voltage protection level
(kV)
0.95
Voltage protection level L-N
(kV)
0.85
Voltage protection level N-PE
(kV)
0.95
Mounting method
DIN rail (top hat rail) 35 mm
Construction size
Other
Max. conductor cross section solid (solid, stranded)
(mm²)
2.5
Max. conductor cross section flexible (fine-strand)
(mm²)
16
With remote signalling contact
Yes
Signalling at the device
Optic
Category type 2
Yes
Short-circuit-proof
No
Degree of protection (IP)
IP20
System configuration DC
No
System configuration IT
No
System configuration TN
No
System configuration TN-C
No
System configuration TN-C-S
No
System configuration TN-S
Yes
System configuration TT
No
System configuration other
No
Short-circuit breaking capacity (Isccr)
(kA)
50
Leakage-current free
No
Stock and logistics
Height
0.03 m
Width
0.082 m
Depth
0.105 m
Packaging
box
Weight
0.211 kg
HS code
85363090
Country of Origin
DE
