Phoenix Contact
2866789
DC-power supply
Manufacturer part number: 2866789
Serie: Voeding
Type: QUINT-PS/1AC/24DC/40
EAN-code: 4046356421720
SKU Omnical: 1150176
Stock:
50 items.
Delivery time: 1-2 business days.
InStock
ZCS
€
781,68
per item
€
687,10
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
2866789 Phoenix Contact DC-power supply

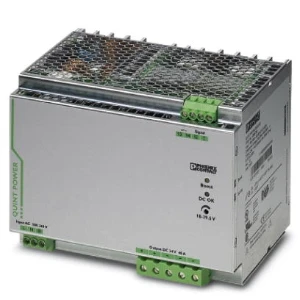

Phoenix Contact DC-power supply QUINT-PS/1AC/24DC/40
Datasheet
Voltage type of supply voltage
AC
1st secondary output voltage
(V)
18 - 29.5
Nominal value output current 1
(A)
40
Max. output current 1
(A)
45
Width
(mm)
180
Secondary voltage adjustable
Yes
Short-circuit-proof
Yes
Rated supply voltage at AC 50 Hz
(V)
85 - 240
Rated supply voltage at AC 60 Hz
(V)
100 - 264
Rated supply voltage at DC
(V)
90 - 300
Output voltage stabilized
Yes
Power consumption
(VA)
1157
Power output
(W)
960
Stabilized
Yes
Type of electric connection
Screw connection
Rail mounting possible
Yes
Wall mounting possible
No
Modular version
No
Built-in height
(mm)
130
Direct mounting possible
No
Height
(mm)
130
Depth
(mm)
125
Suitable for safety functions
Yes
Performance level according to EN ISO 13849-1
None
Degree of protection (IP)
IP20
Nominal value output voltage 1
(V)
24
SIL according to IEC 61508
None
Degree of protection (NEMA)
Other
Stock and logistics
Height
0.184 m
Width
0.178 m
Depth
0.275 m
Packaging
box
Weight
3.82 kg
HS code
85044095
Country of Origin
TH
