Phoenix Contact
2800183

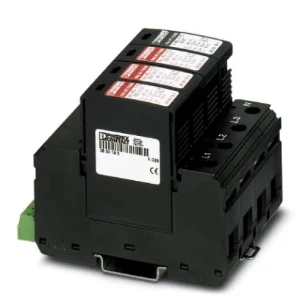

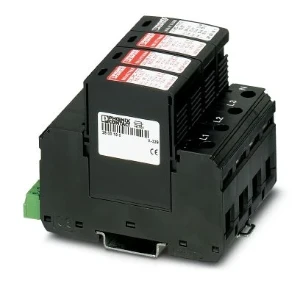

Lightning current arrester for power supply systems
Manufacturer part number: 2800183
Serie: Bliksemstroom-/overspanningsbeveili
Type: VAL-MS-T1/T2 335/12.5/3+1-FM
EAN-code: 4046356518550
SKU Omnical: 1114279
Stock:
11 items.
Delivery time: 1-2 business days.
InStock
ZCQ
€
654,33
per item
€
575,16
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
2800183 Phoenix Contact Lightning current arrester for power supply systems
Phoenix Contact Lightning current arrester for power supply systems VAL-MS-T1/T2 335/12.5/3+1-FM
Datasheet
Type of poles
3+N/PE
Lightning impulse current (10/350 µs)
(kA)
12.5
Nominal discharge surge current (8/20)
(kA)
12.5
Max. continuous voltage AC
(V)
335
Voltage protection level
(kV)
1.7
Voltage protection level L-N
(kV)
1.2
Follow current extinguishing capability
(kA)
0.1
Mounting method
DIN rail (top hat rail) 35 mm
Construction size
Other
Max. conductor cross section solid (solid, stranded)
(mm²)
35
Max. conductor cross section flexible (fine-strand)
(mm²)
25
With remote signalling contact
Yes
Exhausting
No
Signalling at the device
Optic
Category type 1
Yes
System configuration IT
No
System configuration TN
No
System configuration TN-C
No
System configuration TN-C-S
No
System configuration TN-S
No
System configuration TT
Yes
System configuration other
No
Integrated backup fuse
Yes
Suitable for outdoor use
No
Degree of protection (IP)
IP20
Stock and logistics
Height
0.083 m
Width
0.081 m
Depth
0.111 m
Packaging
box
Weight
0.677 kg
HS code
85363030
Country of Origin
DE
