Phoenix Contact
2774017
Feed-through terminal block
Manufacturer part number: 2774017
Serie: Twee-etageklem
Type: UKK 5
EAN-code: 4017918068301
SKU Omnical: 1014205
Stock:
831 items.
Delivery time: 1-2 business days.
InStock
ZTV
€
474,13
per 100 items
€
399,69
per 100 items
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

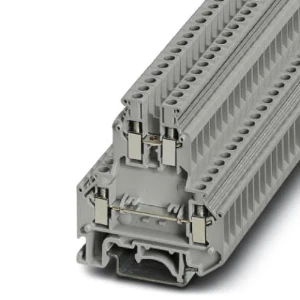

2774017 Phoenix Contact Feed-through terminal block
Phoenix Contact Feed-through terminal block UKK 5
Datasheet
Connectable conductor cross section fine-strand without cable end sleeve
(mm²)
0.2 - 4
Connectable conductor cross section fine-strand with cable end sleeve
(mm²)
0.25 - 0.25
Connectable conductor cross section solid-core
(mm²)
0.2 - 4
Connectable conductor cross section multi-wired
(mm²)
0.2 - 1.5
Rated current In
(A)
32
Width
(mm)
6.2
Rated voltage
(V)
500
Type of electrical connection 1
Screw connection
Type of electrical connection 2
Screw connection
Number of levels
2
Number of clamp positions per level
2
Mounting method
DIN rail (top hat rail) 35 mm
Material insulation body
Other
Operating temperature
(°C)
-60 - 105
Inflammability class of insulation material according to with UL94
V0
Width/grid dimension
(mm)
6.2
Height at lowest possible mounting height
(mm)
62
Length
(mm)
56
Closing plate required
Yes
Colour
Grey
Internally connected stages
No
Height
(mm)
56
Depth
(mm)
62
Suitable for conductor material
Aluminium/copper
Stock and logistics
Height
0.074 m
Width
0.076 m
Depth
0.246 m
Packaging
box
Weight
0.015 kg
HS code
85369010
Country of Origin
PL
