Phoenix Contact
1424652

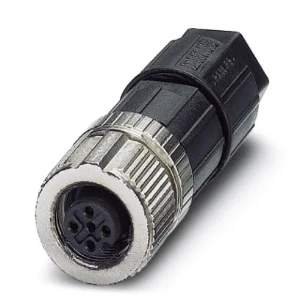

Circular connector for field assembly (industrial connector)
Manufacturer part number: 1424652
Serie: Connector
Type: SACC-M12FS-5PL M
EAN-code: 4055626374994
SKU Omnical: 2511559
Stock:
81 items.
Delivery time: 1-2 business days.
InStock
ZCK
€
13,43
per item
€
10,93
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
1424652 Phoenix Contact Circular connector for field assembly (industrial connector)
Phoenix Contact Circular connector for field assembly (industrial connector) SACC-M12FS-5PL M
Datasheet
Contact type
Other
Diameter connector
(mm)
19
Number of plug-in contacts
5
Type of housing
Straight
Rated current In
(A)
4
Ambient temperature
(°C)
85 - 85
Rated voltage
(V)
48
Over voltage category
II
Pollution degree
3
Connectable conductor cross section solid-core
(mm²)
0.75 - 0.75
Type of electric connection
Other
Material of contact surface
Nickel
Material contact
Other
Material insulation body
Other
Material housing
Other
With interlocking device
Yes
Locking mechanism
Other
Inflammability class of insulation material according to with UL94
V0
With protective conductor
No
Operating temperature
(°C)
-40 - 85
Coding of M12-round connectors
A
Number of data contacts
0
Number of power contacts
0
Number of control contacts
5
For cable outer diameter
(mm)
4 - 8
Coating housing
Other
Material thread ring
Other
Min. number of insertion cycles
100
Screened
No
With status indication
No
Stock and logistics
Height
0.022 m
Width
0.051 m
Depth
0.143 m
Packaging
box
Weight
0.028 kg
HS code
85366990
Country of Origin
DE
