Phoenix Contact
1407713

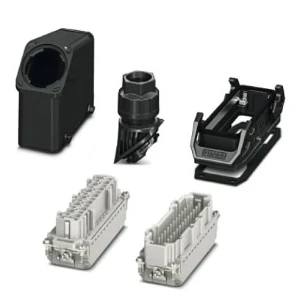

Rectangular connector, set (industrial connector)
Manufacturer part number: 1407713
Serie: Connectorset
Type: HC-EVO-B24PT-BWD-HH-M32-PLRBK
EAN-code: 4046356777780
SKU Omnical: 2094066
Stock: 0.
Estimated lead time: 12 days *
PreOrder
ZCN
€
65,74
per item
€
53,51
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
1407713 Phoenix Contact Rectangular connector, set (industrial connector)
Phoenix Contact Rectangular connector, set (industrial connector) HC-EVO-B24PT-BWD-HH-M32-PLRBK
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Contact type
Hermaphrodite
Length
(mm)
140.5
Height
(mm)
179.177
Number of plug-in contacts
24
Width
(mm)
55.855
Rated current In
(A)
16
Ambient temperature
(°C)
100 - 100
Rated voltage
(V)
500
Rated surge voltage
(kV)
6
Over voltage category
III
Pollution degree
3
Connectable conductor cross section fine-strand without cable end sleeve
(mm²)
0.14 - 2.5
Connectable conductor cross section multi-wired
(mm²)
0.14 - 2.5
Type of electric connection
Insulation piercing connection
Material of contact surface
Other
Material contact
Other
Material insulation body
Other
Material housing
Other
Housing coating
Not applicable
Polarization
None
With interlocking device
Yes
Locking mechanism
Double locking levers
Inflammability class of insulation material according to with UL94
V0
With protective conductor
Yes
Operating temperature
(°C)
-40 - 100
Degree of protection (IP), mounted
IP66
Depth
(mm)
130.871
Number of poles
24
Coating housing
Other
EMC-version
No
Number of conduit inlets
1
With sealing
Yes
Impact strength
IK09
Position cable feed
Other
Stock and logistics
Height
0.093 m
Width
0.114 m
Depth
0.271 m
Packaging
box
Weight
0.57 kg
HS code
85366990
Country of Origin
CN
