Philips
8720169500204
Ceiling-/wall luminaire
Manufacturer part number: 8720169500204
Serie:
Type: WT120C G2
EAN-code: 8720169500204
SKU Omnical: 3383553
Stock:
75 items.
Delivery time: 1-2 business days.
InStock
ZEN
$
138.74
per item
$
106.00
per item
USD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
8720169500204 Philips Ceiling-/wall luminaire
Philips Ceiling-/wall luminaire WT120C G2 LED37_60S/840 PSU L1500
Datasheet
Suitable for suspended mounting
Yes
Suitable for ceiling mounting
Yes
Suitable for built-in mounting
No
Suitable for surface mounting
Yes

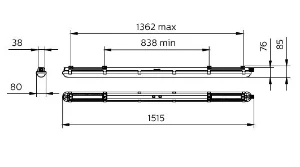

Width
(mm)
80
Lamp type
LED not exchangeable
With light source
Yes
Lamp holder
Other
Type of control gear
LED operating device current-controlled
With control gear
Yes
Suitable for emergency lighting
No
Nominal voltage
(V)
220 - 240
Nominal current
(mA)
115 - 200
Colour temperature
(K)
4000 - 4000
Material housing
Plastic
Colour housing
Grey
Suitable for light line configuration
No
Material cover
Plastic matt/satinized
Suitable for workplace according to EN 12464-1
No
Type of grid
None
Light sharing
Symmetric
Beam angle
Extreme wide beam >80°
Light outlet
Direct
Length
(mm)
1515
Height/depth
(mm)
76
With movement sensor
No
With light sensor
No
Protection class
I
Degree of protection (IP)
IP65
Impact strength
IK08
Luminaire with limited surface temperature, sign "D“
Yes
Covering of the luminaire with thermally insulating material possible
No
Max. system power
(W)
43
With air slots
No
Voltage type
AC
Rated luminous flux according to IEC 62722-2-1
(lm)
6000
Colour of light
White
Colour rendering index CRI
80-89
Surface protection housing
Untreated
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming potentiometer (integrated)
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off
No
Dimming phase cut-on
No
Dimming programmable
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
Operation by Bluetooth
No
No dim function
Yes
Light distributor
Diffuser lens/optic/panel
Colour consistency (McAdam ellipse)
SDCM3
Rated life time L70/B50 at 25 °C
(h)
100000
Rated ambient temperature according to IEC62722-2-1
(°C)
25 - 25
Emergency power supply integrated
No
Filament test according to IEC 60695-2-11
850 °C - 30 s
Luminaire efficacy
(lm/W)
140
Power factor
0.9
Type of wiring
Suitable for through wiring
Number of poles
3
Conductor cross section
(mm²)
0.5
Connection type
Push-in clamp
Total harmonic distortion
12
Photobiological safety according to EN 62471
RG0
Unified Glare Ratio (UGR)
25
Dimming DALI-2
No
Flickering value Pst LM
1
Stroboscope effect value SVM
0.4
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Exchangeable control gear
Yes
Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq)
(%)
80
Failure rate at median useful life of 50,000 h at 25 °C ambient (tq)
(%)
5
Max. number of luminaires per miniature circuit breaker B16
36
Max. number of luminaires per miniature circuit breaker C16
60
Constant light output (CLO)
No
Colour temperature adjustable
No
Luminous flux adjustable
Positions
Beam angle adjustable
No
Suitable for wall mounting
Yes
D
Compatible with Casambi
No
Stock and logistics
Height
0.083 m
Width
0.09 m
Depth
1.535 m
Packaging
box
Weight
2.189 kg
HS code
9405114090
