Pflitsch
22554DM2X9
Cable gland
Manufacturer part number: 22554DM2X9
Serie:
Type: 22053DM2X9
EAN-code: 4050366070496
SKU Omnical: 1280519
Stock:
45 items.
Delivery time: 1-2 business days.
InStock
H23
$
2,832.15
per 100 items
$
1,617.16
per 100 items
CAD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

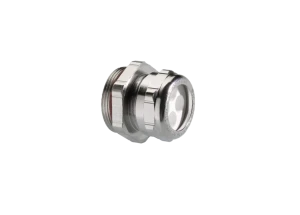

22554DM2X9 Pflitsch Cable gland
Pflitsch Cable gland Kabelwartel messing vernikkeld, M25x1,5, doorlaat 2x9mm
Datasheet
Suitable for cable diameter
(mm)
9 - 9
Thread type
Metric
Nominal thread size metric/PG
25
With strain relief
Yes
Material
Metal
Pitch thread
(mm)
1.5
Thread length
(mm)
7.5
Wrench width
(mm)
30
Hexagon angular dimension
(mm)
33.5
Material quality
Brass
Surface protection
Nickel-plated
Halogen free
Yes
Glass-fibre reinforced
No
Degree of protection (IP)
IP68
Shock resistant
Yes
Colour
Other
Bend radius protection/trumpet flare
No
With locknut
No
Model
Straight
Multi seal area
Yes
Flat cable coupling
No
Type of sealing
Sealing ring
Separable screw gland
No
Operating temperature
(°C)
-40 - 130
Explosion-tested version
No
EMC-version
No
Stock and logistics
Height
34 mm
Width
34 mm
Depth
34 mm
Packaging
box
Weight
62 g
HS code
74122000
Country of Origin
DE
