Omron
R8M11156H
Electric motor
Manufacturer part number: R8M11156H
Serie: Servo-2
Type: R88M-1M1K520C-S2
EAN-code: 4549734165112
SKU Omnical: 1801684
Stock: 0.
Estimated lead time: 11 days *
PreOrder
XDL
€
1.626,72
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

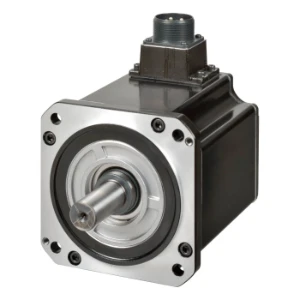

R8M11156H Omron Electric motor
Omron Electric motor 1S serie AC-servomotor, 1,5 kW, 400 VAC, 2000 omw/min, 7,16 Nm, absolu
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Model
Other
Rated voltage
(V)
400
Rated frequency
(Hz)
50 - 60
Voltage type
AC
Rated performance at rated frequency
(kW)
1.5
Rated current
(A)
4.1
Number of phases
3
Degree of protection (IP)
IP67
Construction type
IM 3001 (B5)
Insulation class according to IEC
F
Duty cycle
S1
Frame size according to IEC
(mm)
130
Bearing
Other
With anti-condensation
No
With positive temperature coefficient resistor (PTC)
No
With resistance temperature detector (RTD)
No
Intrinsic safety (IS)
None
Suitable for frequency control
No
Operating temperature
(°C)
0 - 40
Overload capability
No
Cooling method
Air
Shaft end type
Parallel key
Vacuum pressure impregnation (VPI)
None
Rated rotational speed at rated frequency
(1/min)
2000
Degree of protection (NEMA)
Other
Motor efficiency class
Other
Nominal torque
(Nmt)
7.16
Stock and logistics
Height
0.253 m
Width
0.186 m
Depth
0.407 m
Packaging
box
Weight
8.5 kg
HS code
85015220
Country of Origin
PH
