Omron
R8M10038H
Electric motor
Manufacturer part number: R8M10038H
Serie: Servo-2
Type: R88M-1M40030T-S2
EAN-code: 4548583789661
SKU Omnical: 1801678
Stock: 0.
Estimated lead time: 11 days *
PreOrder
XDL
€
1.317,02
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

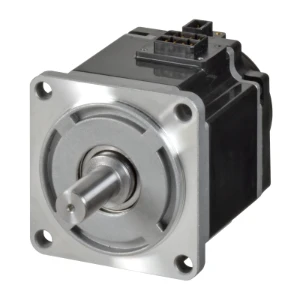

R8M10038H Omron Electric motor
Omron Electric motor 1S serie AC servomotor, 400 W, 230 VAC, 3000 rpm, 1.27 Nm, absolute en
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Model
Other
Rated voltage
(V)
230
Rated frequency
(Hz)
50 - 60
Voltage type
AC
Rated performance at rated frequency
(kW)
0.4
Rated current
(A)
2.5
Number of phases
3
Degree of protection (IP)
IP67
Construction type
IM 3001 (B5)
Insulation class according to IEC
F
Duty cycle
S1
Frame size according to IEC
(mm)
60
Bearing
Other
With anti-condensation
No
With positive temperature coefficient resistor (PTC)
No
With resistance temperature detector (RTD)
No
Intrinsic safety (IS)
None
Suitable for frequency control
No
Operating temperature
(°C)
0 - 40
Overload capability
No
Cooling method
Air
Shaft end type
Parallel key
Vacuum pressure impregnation (VPI)
None
Rated rotational speed at rated frequency
(1/min)
3000
Degree of protection (NEMA)
Other
Motor efficiency class
Other
Nominal torque
(Nmt)
1.27
Stock and logistics
Height
0.118 m
Width
0.128 m
Depth
0.256 m
Packaging
box
Weight
1.695 kg
HS code
85015100
Country of Origin
PH
