Omron
NX010203F
PLC CPU-module
Manufacturer part number: NX010203F
Serie: Machine Controllers
Type: NX1P2-9B24DT1
EAN-code: 4549734556729
SKU Omnical: 3360740
Stock: 0.
Estimated lead time: 11 days *
PreOrder
HAE
€
1.079,73
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

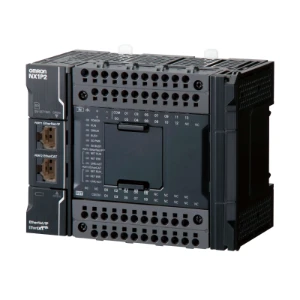

NX010203F Omron PLC CPU-module
Omron PLC CPU-module Sysmac NX1P CPU met 24 digitale transistor-I/O (PNP), 1 MB geheugen, E
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Supply voltage DC
(V)
20.4 - 28.8
Voltage type of supply voltage
DC
Number of relay outputs
0
Width
(mm)
130
Model
Compact
Number of HW-interfaces industrial Ethernet
2
Number of interfaces PROFINET
0
Number of HW-interfaces RS-232
0
Number of HW-interfaces RS-422
0
Number of HW-interfaces RS-485
0
Number of HW-interfaces USB
0
Number of HW-interfaces parallel
0
Number of HW-interfaces Wireless
0
Number of HW-interfaces other
2
Number of analogue outputs
0
Number of analogue inputs
0
Number of digital inputs
14
Number of digital outputs
10
With optical interface
No
Supporting protocol for TCP/IP
Yes
Supporting protocol for PROFIBUS
No
Supporting protocol for CAN
No
Supporting protocol for INTERBUS
No
Supporting protocol for ASI
No
Supporting protocol for KNX
No
Supporting protocol for MODBUS
Yes
Supporting protocol for Data-Highway
No
Supporting protocol for DeviceNet
No
Supporting protocol for SUCONET
No
Supporting protocol for LON
No
Supporting protocol for PROFINET IO
No
Supporting protocol for PROFINET CBA
No
Supporting protocol for SERCOS
No
Supporting protocol for Foundation Fieldbus
No
Supporting protocol for EtherNet/IP
Yes
Supporting protocol for AS-Interface Safety at Work
No
Supporting protocol for DeviceNet Safety
No
Supporting protocol for INTERBUS-Safety
No
Supporting protocol for PROFIsafe
No
Supporting protocol for SafetyBUS p
No
Supporting protocol for other bus systems
Yes
Radio standard Bluetooth
No
Radio standard Wi-Fi 802.11
No
Radio standard GPRS
No
Radio standard GSM
No
Radio standard UMTS
No
IO link master
No
System accessory
No
Redundancy
No
With display
No
Type of memory
FLASH
Memory size
(kByte)
3000
Additional program memory possible
No
Rail mounting possible
Yes
Wall mounting/direct mounting
Yes
Front built-in possible
No
Rack-assembly possible
No
Suitable for safety functions
No
Performance level according to EN ISO 13849-1
Level a
Appendant operation agent (Ex ia)
No
Appendant operation agent (Ex ib)
No
Explosion safety category for gas
None
Explosion safety category for dust
None
Height
(mm)
100
Depth
(mm)
71
SIL according to IEC 61508
None
Supporting protocol for DNP3
No
Supporting protocol for IEC 60870
No
Supporting protocol for IEC 61850 Ethernet
No
Yes
No
No
No
No
No
No
No
No
No
No
No
No
Stock and logistics
Height
0.09 m
Width
0.138 m
Depth
0.155 m
Packaging
box
Weight
0.687 kg
HS code
84714100
Country of Origin
CN
