Omron
E3JK2034M

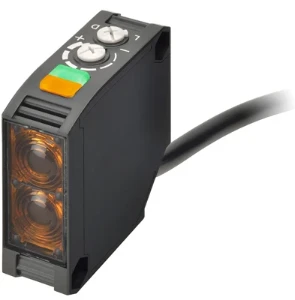

Retroreflective photoelectric sensor
Manufacturer part number: E3JK2034M
Serie: Fotocellen
Type: E3JK-RR12 2M
EAN-code: 4548583746688
SKU Omnical: 1161156
Stock: 0.
Estimated lead time: 7 days *
PreOrder
FHK
€
126,36
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
E3JK2034M Omron Retroreflective photoelectric sensor
Omron Retroreflective photoelectric sensor Retroreflectie, 7 m, polarisatie, 24 tot 240 VDC/24 tot 240 VAC, relai
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Pre failure notice
No
With time function
No
Rated switching distance
(mm)
7000
Max. switching distance
(mm)
7000
Max. output current
(mA)
3000
With reflector
No
Analogue output 0 V ... 10 V
No
Analogue output 0 mA ... 20 mA
No
Analogue output 4 mA ... 20 mA
No
Analogue output -10 V ... +10 V
No
With other analogue output
No
Setting procedure
Manual adjustment
With communication interface analogue
No
With communication interface AS-Interface
No
With communication interface CANOpen
No
With communication interface DeviceNet
No
With communication interface Ethernet
No
With communication interface INTERBUS
No
With communication interface PROFIBUS
No
With communication interface RS-232
No
With communication interface RS-422
No
With communication interface RS-485
No
With communication interface SSD
No
With communication interface SSI
No
Number of semiconductor outputs with signalling function
0
Number of contact energized outputs with signalling function
1
Number of protected semiconductor outputs
0
Number of protected contact energized outputs
0
Type of interface for safety communication
Other
Type of electric connection
Cable
Type of switching output
Relay contact
Type of switch function
Change-over contact (NO/NC)
Operation agent-safety class
Safety class 2
Explosion safety category for gas
None
Explosion safety category for dust
None
Construction type housing
Cuboid
Width sensor
(mm)
18
Height of sensor
(mm)
50
Length of sensor
(mm)
50
Sensing mode
Light-/dark switching
Material of optical surface
Plastic
Material housing
Plastic
Min. reflector distance
(mm)
100
Ambient temperature
(°C)
-25 - 55
Response time
(ms)
20
Switching frequency
(Hz)
50
Type of safety according to IEC 61496-1
1
Rated control supply voltage at AC 50 Hz
(V)
24 - 240
Rated control supply voltage at AC 60 Hz
(V)
24 - 240
Rated control supply voltage at DC
(V)
24 - 240
Voltage type
AC/DC
With monitoring function downstream switching devices
No
Laser protection class
None
Wavelength of the sensor
(nm)
624
Type of light
Polarized red light
With restart blockage
No
Suitable for safety functions
No
Degree of protection (IP)
IP64
Degree of protection (NEMA)
Other
Stock and logistics
Height
0.047 m
Width
0.123 m
Depth
0.122 m
Packaging
box
Weight
0.182 kg
HS code
90314990
Country of Origin
ID
