Norton
4234807716

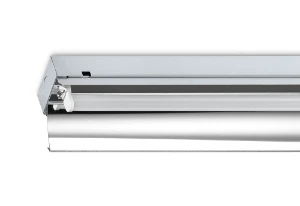

Ceiling-/wall luminaire
Manufacturer part number: 4234807716
Serie: STD LED
Type: 84 7700LM 1500
EAN-code: 8715182143323
SKU Omnical: 1223218
Stock: 0.
Estimated lead time: 5 days *
PreOrder
P38
€
235,00
per item
€
179,54
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
4234807716 Norton Ceiling-/wall luminaire
Norton Ceiling-/wall luminaire STD 84 7700LM 1500
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Suitable for wall mounting
Yes
Suitable for suspended mounting
Yes
Suitable for ceiling mounting
Yes
Suitable for built-in mounting
No
Suitable for surface mounting
Yes
Width
(mm)
111
Lamp type
LED not exchangeable
With light source
Yes
Lamp holder
Other
Suitable for number of lamps
1
Type of control gear
LED operating device current-controlled
With control gear
Yes
Suitable for emergency lighting
Yes
Nominal voltage
(V)
198 - 264
Colour temperature
(K)
4000 - 4000
Material housing
Steel
Colour housing
Grey
Suitable for light line configuration
Yes
Suitable for workplace according to EN 12464-1
No
Light sharing
Symmetric
Beam angle
Medium beam 21-40°
Light outlet
Direct
Length
(mm)
1476
Height/depth
(mm)
70
With movement sensor
No
With light sensor
No
Protection class
I
Degree of protection (IP)
IP20
Impact strength
IK06
Luminaire with limited surface temperature, sign "D“
No
Covering of the luminaire with thermally insulating material possible
No
Max. system power
(W)
70
With air slots
No
Voltage type
AC
Rated luminous flux according to IEC 62722-2-1
(lm)
7700
Colour of light
White
Colour rendering index CRI
80-89
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming potentiometer (integrated)
No
Dimming GPRS
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off
No
Dimming phase cut-on
No
Dimming programmable
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
Dimming depending on control gear
Yes
Operation by Bluetooth
No
No dim function
Yes
Light distributor
Reflector
Colour consistency (McAdam ellipse)
SDCM3
Energy efficiency class of the built-in lamp
A++, A+, A (LED)
Rated life time L80/B10 at 25 °C
(h)
50000
Degree of protection (NEMA)
1
Rated ambient temperature according to IEC62722-2-1
(°C)
10 - 35
Emergency power supply integrated
No
Filament test according to IEC 60695-2-11
650 °C - 30 s
Luminaire efficacy
(lm/W)
110
Power factor
0.99
Type of wiring
Suitable for through wiring
Number of poles
3
Conductor cross section
(mm²)
0.5
Connection type
Push-in clamp
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Colour temperature adjustable
No
Luminous flux adjustable
No
Beam angle adjustable
No
Suitable for wall mounting
Yes
Stock and logistics
Height
104 mm
Width
234 mm
Depth
1566 mm
Packaging
box
Weight
2.3 kg
HS code
94054239
