Norton
137370344605

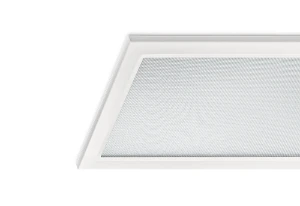

Ceiling-/wall luminaire
Manufacturer part number: 137370344605
Serie: LPS-P
Type: 84 3400LM 120x30 1-10V NOOD
EAN-code: 8715182164472
SKU Omnical: 1302575
Stock: 0.
Estimated lead time: 5 days *
PreOrder
P38
€
471,50
per item
€
360,23
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
137370344605 Norton Ceiling-/wall luminaire
Norton Ceiling-/wall luminaire LPS-P 84 3400LM 120x30 1-10V NOOD
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Suitable for wall mounting
No
Suitable for suspended mounting
Yes
Suitable for ceiling mounting
Yes
Suitable for built-in mounting
Yes
Suitable for surface mounting
Yes
Width
(mm)
296
Lamp type
LED not exchangeable
With light source
Yes
Lamp holder
Other
Suitable for number of lamps
1
Type of control gear
LED operating device current-controlled
With control gear
Yes
Suitable for emergency lighting
Yes
Nominal voltage
(V)
220 - 240
Colour temperature
(K)
4000 - 4000
Material housing
Steel
Colour housing
White
Suitable for light line configuration
No
Material cover
Plastic, structured
Suitable for workplace according to EN 12464-1
Yes
Light sharing
Symmetric
Beam angle
Wide beam 41-80°
Light outlet
Direct
Length
(mm)
1196
Height/depth
(mm)
13.5
Built-in height/depth
(mm)
68
With movement sensor
No
With light sensor
No
Protection class
II
Degree of protection (IP)
IP20
Impact strength
IK06
Luminaire with limited surface temperature, sign "D“
No
Covering of the luminaire with thermally insulating material possible
No
Max. system power
(W)
32
With air slots
No
Voltage type
AC
Rated luminous flux according to IEC 62722-2-1
(lm)
3200
Colour of light
White
Colour rendering index CRI
80-89
Surface protection housing
Lacquered
Dimming 0-10 V
No
Dimming 1-10 V
Yes
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming potentiometer (integrated)
No
Dimming GPRS
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off
No
Dimming phase cut-on
No
Dimming programmable
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
Dimming depending on control gear
Yes
Operation by Bluetooth
No
No dim function
No
Light distributor
Diffuser lens/optic/panel
Colour consistency (McAdam ellipse)
SDCM3
Energy efficiency class of the built-in lamp
A++, A+, A (LED)
Rated life time L80/B10 at 25 °C
(h)
70000
Rated life time L90/B50 at 25 °C
(h)
50000
Degree of protection (NEMA)
1
Rated ambient temperature according to IEC62722-2-1
(°C)
10 - 40
Emergency power supply integrated
Yes
Filament test according to IEC 60695-2-11
650 °C - 30 s
Luminaire efficacy
(lm/W)
100
Power factor
0.96
Type of wiring
Ending
Number of poles
4
Conductor cross section
(mm²)
0.5
Connection type
Other
Unified Glare Ratio (UGR)
19
Flickering value Pst LM
1
Stroboscope effect value SVM
0.4
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Exchangeable control gear
Yes
Max. number of luminaires per miniature circuit breaker B16
28
Max. number of luminaires per miniature circuit breaker C16
45
Colour temperature adjustable
No
Luminous flux adjustable
Continuously variable
Beam angle adjustable
No
Suitable for wall mounting
No
E
Dimmable
Yes
Stock and logistics
Height
43 mm
Width
311 mm
Depth
1288 mm
Packaging
box
Weight
5.5 kg
HS code
94054239
