Norton
1176228963

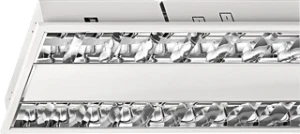

Ceiling-/wall luminaire
Manufacturer part number: 1176228963
Serie: RTP-XH LED
Type: 84 2 4650 LM GST
EAN-code: 8715182106687
SKU Omnical: 1160497
Stock: 0.
Estimated lead time: 5 days *
PreOrder
P38
€
201,00
per item
€
153,56
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
1176228963 Norton Ceiling-/wall luminaire
Norton Ceiling-/wall luminaire RTP-XH LED 84 2 4650LM GST
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Suitable for wall mounting
No
Suitable for suspended mounting
No
Suitable for ceiling mounting
Yes
Suitable for built-in mounting
Yes
Suitable for surface mounting
No
Width
(mm)
296
Lamp type
LED not exchangeable
With light source
Yes
Lamp holder
Other
Suitable for number of lamps
2
Lamp power
(W)
28.5
Type of control gear
LED operating device current-controlled
With control gear
Yes
Circuit
Other
Suitable for emergency lighting
Yes
Nominal voltage
(V)
198 - 264
Colour temperature
(K)
4000 - 4000
Material housing
Steel
Colour housing
White
Suitable for light line configuration
No
Material cover
Without cover
Suitable for workplace according to EN 12464-1
Yes
Type of grid
High-gloss
Reflector
High-gloss
Light sharing
Symmetric
Beam angle
Wide beam 41-80°
Light outlet
Direct
Length
(mm)
1196
Height/depth
(mm)
58
Built-in length
(mm)
1174
Built-in width
(mm)
274
Built-in height/depth
(mm)
105
With movement sensor
No
With light sensor
No
Protection class
I
Degree of protection (IP)
IP20
Impact strength
IK07
Luminaire with limited surface temperature, sign "D“
No
Covering of the luminaire with thermally insulating material possible
No
Max. system power
(W)
36
With air slots
No
Voltage type
AC
Rated luminous flux according to IEC 62722-2-1
(lm)
4650
Colour of light
White
Colour rendering index CRI
80-89
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming potentiometer (integrated)
No
Dimming GPRS
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off
No
Dimming phase cut-on
No
Dimming programmable
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
Dimming depending on control gear
Yes
Operation by Bluetooth
No
No dim function
Yes
Light distributor
Reflector
Colour consistency (McAdam ellipse)
SDCM3
Energy efficiency class of the built-in lamp
A++, A+, A (LED)
Rated life time L80/B10 at 25 °C
(h)
50000
Degree of protection (NEMA)
1
Rated ambient temperature according to IEC62722-2-1
(°C)
10 - 40
Emergency power supply integrated
No
Filament test according to IEC 60695-2-11
650 °C - 30 s
Luminaire efficacy
(lm/W)
129
Power factor
0.99
Type of wiring
Ending
Number of poles
3
Conductor cross section
(mm²)
0.5
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Colour temperature adjustable
No
Luminous flux adjustable
No
Beam angle adjustable
No
Suitable for wall mounting
No
Stock and logistics
Height
68 mm
Width
314 mm
Depth
1216 mm
Packaging
box
Weight
4.1 kg
HS code
94054239
